Oki Electric Cable, Industry's First to Develop an 8 Meter IEEE1394.b Compliant Long Cable Achieving an 800Mbps Transmission Speed
[Reference]

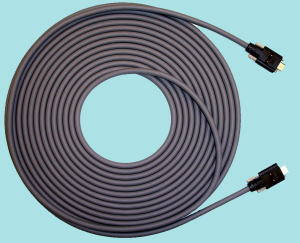

IEEE1394.b Long Cable (8m)
Structure and Application example
The Camera port (IEEE 1394.b interface) of an FA computer can be connected to the Input/output terminal of a factory camera which connecting to Chip mounter of any other FA equipment and read video data or operate the camera remotely.
Tentative Specification
| Item | Contents |
|---|---|
| Type of sheath | Fire retardant PVC |
| O.D. of sheath | 7.5mm |
| Max transmission distance | 8m |
| Connector shape | 9-pin connector with screw thread (beta type) |
| Rated voltage, rated temperature | 30 V, 80degrees |
| Fire retardancy | VW-1 |
| Working environment | Indoors, 0 to 40degrees, 20 to 85% RH |
Above is a tentative specification. Please contact us for detail
Performance
| Item | Perfomance | |
|---|---|---|
| Differential mode impedance (Ω) | 110+/-6 | |
| Common mode impedance (Ω) | 33+/-6 | |
| Attenuation(dB/Total length) | 250MHz | ≤3.30 |
| 400MHz | ≤4.10 | |
| 500MHz | ≤4.85 | |
| 800MHz | ≤6.20 | |
| 1000MHz | ≤7.50 | |
| Propagation delay (ns/m) | ≤5.05 | |
| Intra-pair (ps/Total length) | ≤160 | |
