What is EDM?

EDM Wire : Wire for EDM Wire type

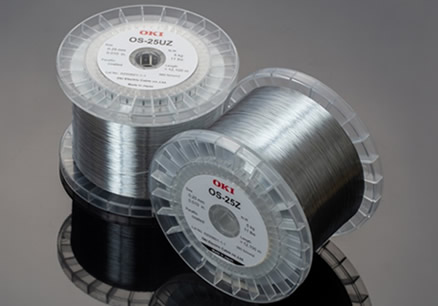

New Product    OS-UZ wire

OS-UZ wire

Compared with conventional wires, OS-UZ achieves 30% higher cutting speed while rough cut, also improves the smoothness of surface and positioning accuracy.
Special coating on the wire prevents rusting and much improves its shelf-life.
A newly developed manufacturing technology enables the wire to reduce metal powder drastically compared with the conventional wires.

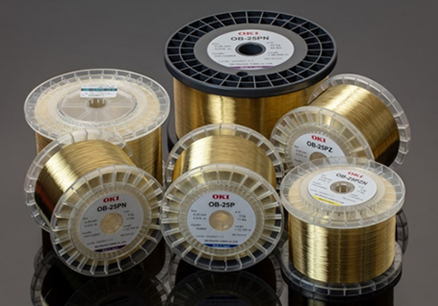

OB-P wire/OB-B wire

OB-P wire/OB-B wire

This wire is the basic type in the series. It is available in two types, hard (P type) and soft (B type). This wire exhibits maximum EDM performance in a general-purpose, standard grade, or other wire EDM machine.

OB-7S wire

OB-7S wire

This type has the smallest wire diameter in the series. It uses a brass type special alloy, realizing a reduction of cost compared to expensive tungsten wire. It exhibits maximum EDM performance in a wire EDM machine intended exclusively for using fine wire for precision machining of molds for lead frames, and so on.

OB-PN wire

OB-PN wire

This wire is not coated with paraffin. It is ideal mainly for a wire EDM machine used in combination with an AT unit made by Mitsubishi Electric. This wire provides the work material with a fine finish and also realizes superior automatic threading ability.

OB-PZN wire

OB-PZN wire

This wire is not coated with paraffin. It is ideal mainly for a wire EDM machine which has an AWF mechanism manufactured by Fanuc.
This wire provides the work material with a fine finish and also realizes superior automatic threading ability.

OS-Z wire

OS-Z wire

This zinc-coated wire consists of brass wire electroplated with high purity zinc. The high plating accuracy realizes faster machining speed and also provides a better surface finish on the work piece.

Technical data

Bobbin and Packaging information
