Robot cables
New Products

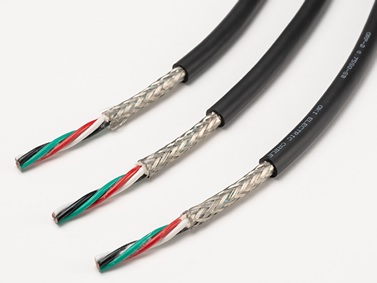

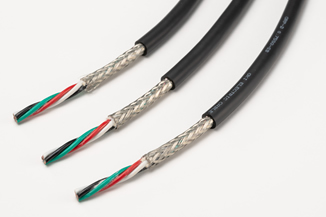

ORP-D Cable Series(UL2586)
Power/drive cable of the ORP cable series.
Supports a 600 V rating while having the small diameter of a 300 V rating product.

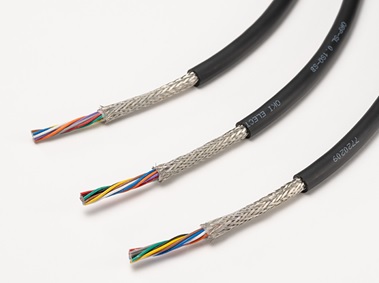

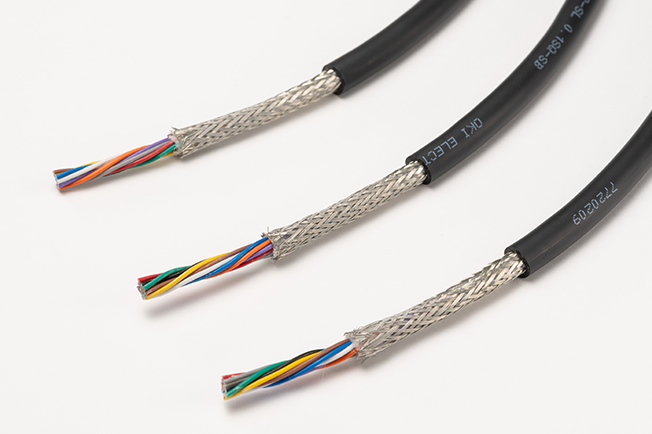

ORP Slim Cable Series
Designed as a small-diameter model of the ORP cable series.
Our unique special elastomer is used to insulate the core wire.
Suitable for all robot moving parts.

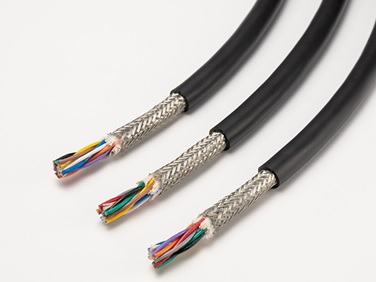

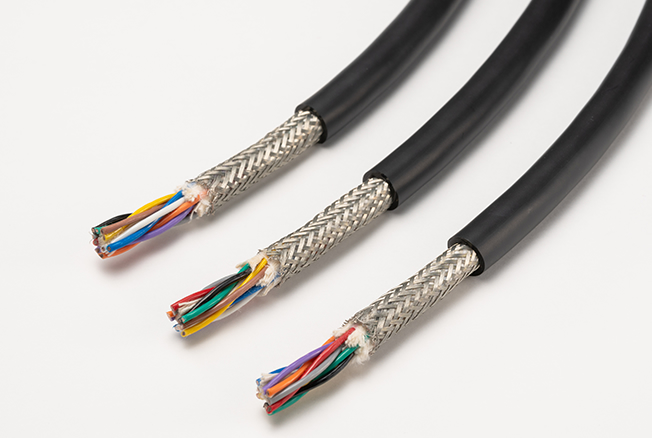

ORP Cable Series
By applying a flame-resistant special elastomer, an original technology developed by OKI Electric Cable, and by improving the internal structure, the company succeeded in developing a highly flexible, smaller diameter "ORP Cable" offered at a low price.

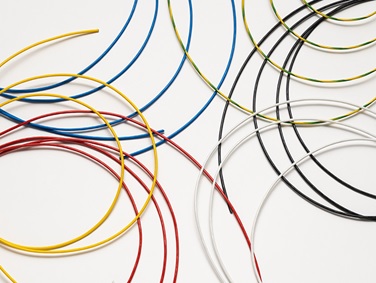

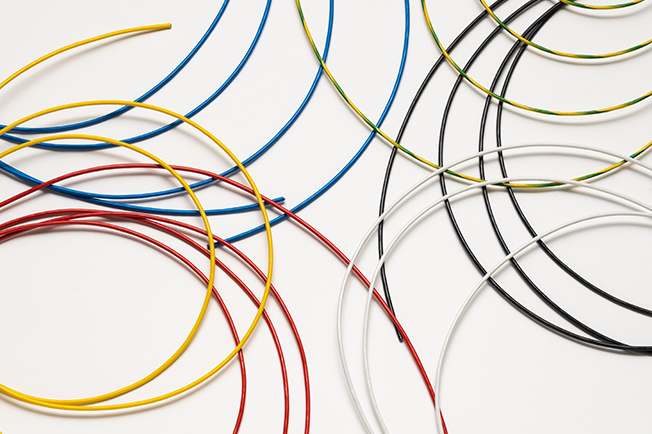

ORP-I Series
These insulated wires feature a special elastomer insulator with proven performance track record in the "ORP Cable Series" and are suitable for the wiring of moving parts inside devices.
Robot Cable Moving Method
- Oki Electric Cable present following 3tems as main moving method:
- 1. Bending
2. Sliding
3. Twisting - Also for fixed wiring method:
- 4. Robot cables for fixed part
Flex cable for bending
| Bending Test Equipment | Bending R | 10mm |
|---|---|---|
| 12.7mm | ||
| 20mm | ||
| 30mm | ||
| 50mm | ||
| Bending Angle | +/-90degrees | |
| +/-120degrees | ||
| +/-180degrees | ||
| Bending Speed | 60times/min. (MAX) | |
| Count | One back and forth |
Flex cable for sliding
| Sliding Test Equipment | Outer Diameter | 30φ or less | 9φ or less |
|---|---|---|---|
| Moving Distance | 1.5m | 350mm | |
| Moving Speed | 15times/Min. (MAX) | 70times/Min. (MAX) | |
| Bending R | 63mm | 20mm to 60mm (5mm pitch) | |
| 100mm | |||
| 125mm | |||
| 200mm | |||
| Count | One back and forth | ||
Flex cable for twisting
| Twisting Test Equipment | Twisted Angle | +/-180degrees (Fixed) |
|---|---|---|
| Span X | 300mm, 500mm | |
| Twisted Speed | 15times/Min. (Fixed) | |
| Count | One back and forth |
Cable for fixed wiring
This cable can be used exclusively as a fixed cable. It can also be used together with a cable intended to be used for moving parts.
Robot cables selection matrix
| Products Series Name | Cabling Application | ||||
|---|---|---|---|---|---|
| Fixed | Bending | Twisting | Sliding | ||
| ORP-D Cable Series |  |
|
|
|
Power/drive cable of the ORP cable series. Supports a 600 V rating while having the small diameter of a 300 V rating product. |
| ORP Slim Cable Series | |
|
|
|
Designed as a small-diameter model of the ORP cable series. Our unique special elastomer is used to insulate the core wire. Suitable for all robot moving parts. |
| ORP Cable Series | |
|
|
|
By applying a flame-resistant special elastomer, an original technology developed by OKI Electric Cable, and by improving the internal structure, the company succeeded in developing a highly flexible, smaller diameter "ORP Cable" offered at a low price. |
| ORP-I Series | |
|
|
These insulated wires feature a special elastomer insulator with proven performance track record in the "ORP Cable Series" and are suitable for the wiring of moving parts inside devices. | |
| OR Super Series | |
|
|
|
Uses newly developed special elastomer insulation, realizing super high bending resistance that is one rank higher than that of the conventional fluorine-based insulation high flexibility cable. |
| ORF Cable Series | |
|
|
The diameter of the conductors is small, and fluorine resin is used for the insulation, resulting in enhanced bending characteristics. Optimum for moving parts of robots, for example. | |
| ORV Cable Series | |
|
|
Small diameter wire is used for the conductors, resulting in enhanced bending characteristics. This cable is thus ideal for moving parts of robots, for example. (It cannot be used for applications where twisting loads are generated.) | |

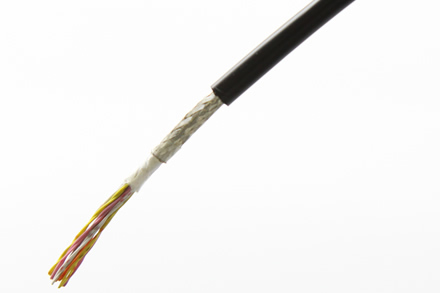

| ORM Cable Series (#0284) | |
10-pair cross-linked PVC insulation shielded cable. This cable is intended to be used for fixed parts. It is fitted with a half-pitch connector. |
|||
| ORM Cable Series (#0286) | |
Composite 12-core PVC insulation shielded cable. There are numbering marks on the insulation to facilitate wiring. | |||
| ORM Cable Series (#0317) | |
Structure comprising of this conductor and ETFE insulator enables the use on moving parts. Servo motor signaling (for moving parts) |
|||
| ORM Cable Series (#0368) |
|
Structure comprising of this conductor enables the use on moving parts. Servo motor signaling (for moving parts) |
|||
| ORM Cable Series (#0460) | |
|
|
|
Structure comprising of this conductor and ETFE insulator enables the use on moving parts. Servo motor signaling (for moving parts) |
| ORM Cable Series (#0461) | |
There are dot marks on the insulation to facilitate wiring. Servo motor signaling (for fixed wiring) |
|||
| ORM Cable Series (#0462) | |
|
|
|
Structure comprising of this conductor and ETFE insulator enables the use on moving parts. Servo motor signaling (for moving parts) |
| ORM Cable Series (#0479) | |
Structure comprising of this conductor and ETFE insulator enables the use on moving parts. | |||
| ORM Cable Series (#0481) | |
The insulation has dot marks to facilitate wiring. Servo motor signaling (for fixed wiring) |
|||
| ORM Cable Series (#0482) | |
Structure comprising of this conductor enables the use on moving parts. Servo motor signaling (for moving parts) |
|||
| ORM Cable Series (#0491) | |
The insulation has dot marks to facilitate wiring. Servo motor signaling (for moving parts) |
|||
| OC Cable Series | |
This is a multi-core type unshielded cable which has excellent oil and heat resistance. It is intended for fixed wiring, such as robot wiring between the control box and the robot. | |||

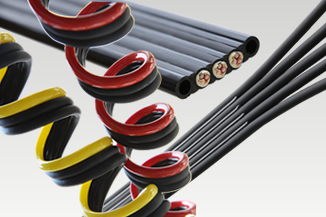

| VEYOR-CABLE™ | |
|
|
This cable is intended for fixed wiring, such as robot wiring between the control box and the robot. | |
| Spiral Cable | |
|
|
|
Processing movable cables and VEYOR cables into a spiral shape provides a wide range of usage scenarios, from use in flexible sections to twisting and bending uses. We offer custom support, from cable design in accordance with your demands tothe processing of curl cords. |
