ORM Cable Series (#0286)
Features
- The insulation is numbered to facilitate wiring.
- This product is environmentally friendly and also conforms to the RoHS (restriction of the use of certain hazardous substances in electrical and electronic equipment) Directive.
Applications
- Servo motor signaling (for fixed wiring)
Construction
| Item | Contents | ||
|---|---|---|---|
| Core wire A | Core wire B | ||
| Number of core wires (cores) | 6 | 6 (: 3 pairs) | |
| Conductor | Classification | Tin-plated soft copper stranded wire | Tin-plated soft copper stranded wire |
| Structure (core wires/mm) | 20/0.18 | 7/0.18 | |
| Insulation | Classification | Heat resistant PVC | Heat resistant PVC |
| Color | Red, Black | Red, White, Black | |
| Identification | Numbering mark | — | |
| O.D.(mm) | Standard 1.50 | Standard 0.94 | |
| Braided shield | Classification | Tin-plated copper wire | |
| Drain wire | Classification | Tin-plated soft copper stranded wire | |
| Structure (core wires/mm) | 12/0.18 | ||
| Sheath | Classification | Heat resistant and oil resistant PVC | |
| Color | Black | ||
| O.D.(mm) | Standard 8.5 | ||
| Completed item | Standard length (m) | 150 | |
| Packed form | Bundle winding | ||
| Estimated weight (kg/km) | 100 | ||

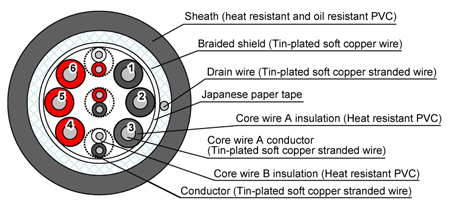

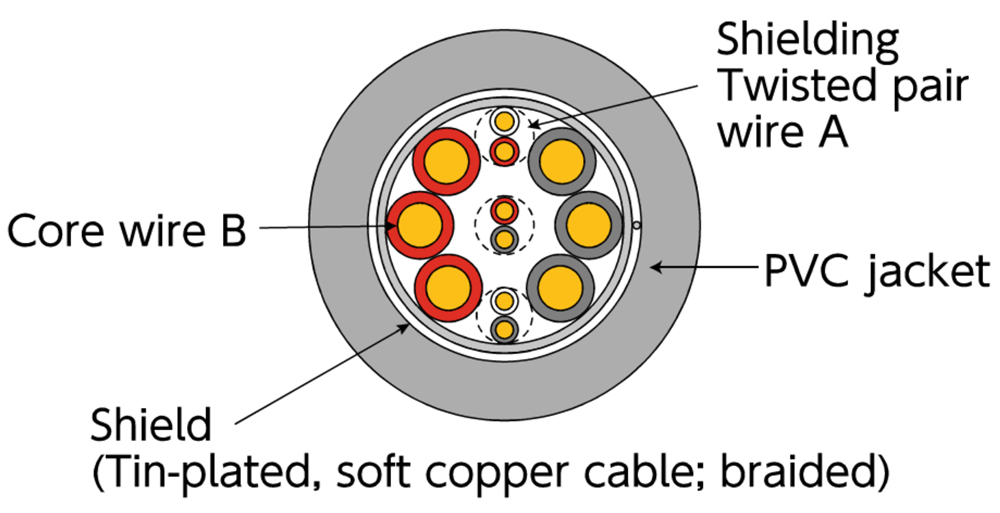

| Cable cross-sectional diagram |  |
||
Core wire color identification
Core wire A
| Twisted-pair wire No. | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Insulation color | Black | Black | Black | Red | Red | Red |
| Insulation color | White | White | White | Black | Black | Black |
| Dot mark |  |
|
|
 |
 |
 |
Core wire B
| Twisted-pair wire No. | 1 | 2 | 3 | |||
|---|---|---|---|---|---|---|
| Core wire No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Insulation color | Red | White | Red | Black | Black | White |
