ORM Cable Series (#0462) (UL20276)

UL Style NO.20276 80degrees 30V

Features

ORM Cable Series (#0462) (UL20276)

  • Structure comprising of this conductor and ETFE insulator enables the use on moving parts.
  • This product is environmentally friendly and also conforms to the RoHS (restriction of the use of certain hazardous substances in electrical and electronic equipment) Directive.

Applications

  • Servo motor signaling (for fixed wiring)

Conformity and safety standard

  • UL style No.20276

Construction

Item Contents
Core wire A Pair wire B
Number of core (twisted pair) wires 2 (:1 pair) 5
Conductor Classification Tin-plated soft copper stranded wire Tin-plated soft copper stranded wire
Structure (core wires/mm) 40/0.08 104/0.08
Insulation Classification ETFE ETFE
Color White, Black Red, Green, Yellow, Brown, Blue
O.D.(mm) Standard 0.88 Standard 1.34
Braided shield Classification Tin-plated soft copper wire
Drain wire Classification Tin-plated soft copper stranded wire
Structure
(core wires/mm)
30/0.08
Sheath Classification Heat resistant and oil resistant PVC
Color Black
O.D.(mm) Standard 7.0
Marking OKI ELECTRIC CABLE / AWM 20276 80degrees 30V VW-1
Completed item Standard length (m) 200
Package Bundle winding
Estimated weight (kg/km) 80

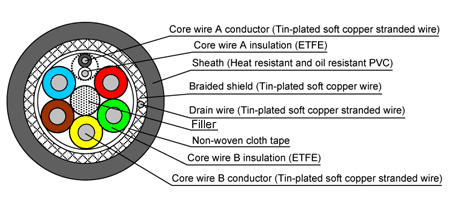

Cable cross-sectional diagram Cable cross-sectional diagram

Performance

Item Contents
Core wire A Core wire B
Electrical characteristics Conductor resistance 93 Ω /km or less (20degrees) 41 Ω /km or less (20degrees)
Insulation resistance 100M Ω /km or more (20degrees) 100M Ω /km or more (20degrees)
Withstand voltage AC500V-min AC500V-min
Completed item performance UL performance UL style No.20276
Ratings 80degrees 30V
Flame resistance VW-1

Bending performance

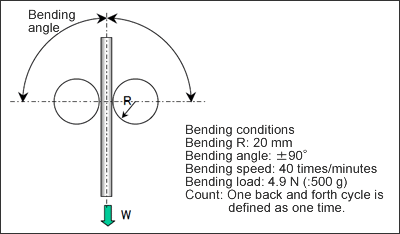

Bending performance

Test sample Number of bend until breakage
ORM(#0462) At least 800,000 times*1
  • *1 : The bending performance is the measured value. It is not a guarantee value.

This cable has at least the same performance as that of the certified cables used by the FA equipment manufacturers.
