ORM Cable Series (#0482) (UL20276)
UL Style NO.20276 80degrees 30V
Features
- Structure comprising of this conductor and ETFE insulator enables the use on moving parts.
- This product is environmentally friendly and also conforms to the RoHS (restriction of the use of certain hazardous substances in electrical and electronic equipment) Directive.
Applications
- Servo motor signaling (for moving parts)
Conformity and safety standard
- UL style No.20276
Construction
| Item | Contents | ||
|---|---|---|---|
| Core wire A | Pair wire B | ||
| Number of core (pair) wires | 2 cores | 4 pairs | |
| Conductor | Classification | Tin-plated soft copper stranded wire | Tin-plated soft copper stranded wire |
| Structure (core wires/mm) | 60/0.08 | 40/0.08 | |
| Insulation | Classification | Heat resistant PVC | Heat resistant PVC |
| Color | Yellow, Orange | Orange, Yellow, Green, Gray | |
| O.D.(mm) | Standard 1.25 | Standard 1.00 | |
| Twisted-pair wires | Classification | — | Each of the orange, yellow, green and gray 1st type core wires (Dot mark: Red) and the 2nd type core wires (Dot mark: Black) are twisted pairs. |
| Braided shield | Classification | Tin-plated soft copper wire | |
| Drain wire | Classification | Tin-plated soft copper stranded wire | |
| Structure (core wires/mm) |
30/0.08 | ||
| Sheath | Classification | Heat resistant and oil resistant PVC | |
| Color | Black | ||
| O.D.(mm) | Standard 7.0 | ||
| Marking | OKI ELECTRIC CABLE / AWM 20276 80C 30V VW-1 | ||
| Completed item | Standard length (m) | 100 | |
| Package | Bundle winding | ||
| Estimated weight (kg/km) | 80 | ||

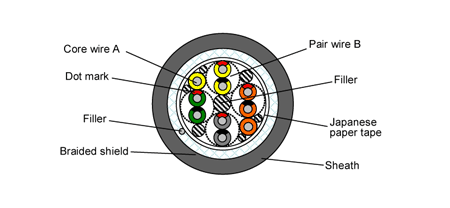

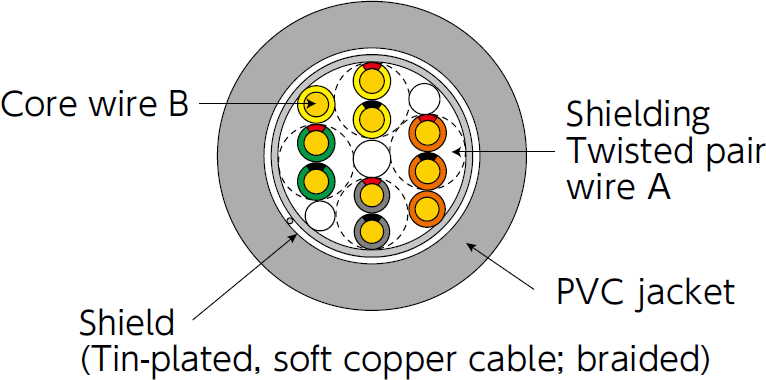

| Cable cross-sectional diagram |  |
||
Performance
| Item | Contents | ||
|---|---|---|---|
| Core wire A | Pair wire B | ||
| Electrical characteristics | Conductor resistance | 66 Ω /km or less (20degrees) | 98 Ω /km Structure comprising of this conductor and ETFE insulator enables the use on moving parts.(20degrees) |
| Insulation resistance | 10M Ω /km or more (20degrees) | 10M Ω /km or more (20degrees) | |
| Withstand voltage | AC500V-min | AC500V-min | |
| Completed item performance | UL performance | UL style No.20276 | |
| Ratings | 80degrees 30V | ||
| Flame resistance | VW-1 | ||

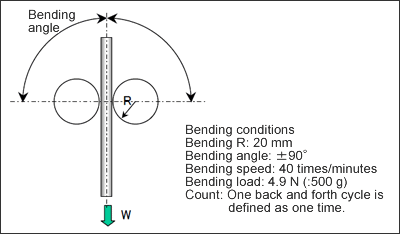

Bending performance
| Test sample | Number of bend until breakage |
|---|---|
| ORM(#0482) | At least 200,000 times |
- * : The bending performance is the measured value. It is not a guarantee value.
This cable has at least the same performance as that of the certified cables used by the FA equipment manufacturers.
