EDM Wire



OS WIRE Series(OS-Z wire / OS-ZN wire)

OS-Z wire

Features

OS-Z wire

  • The high purity zinc layer formed on the surface of the brass realizes higher machining speed.
  • By uniformly coating the surface of the wire with zinc, which has good discharge characteristics,finer discharge is possible and high performance is demonstrated in surface accuracy.
  • Almost no copper adheres to the workpiece.

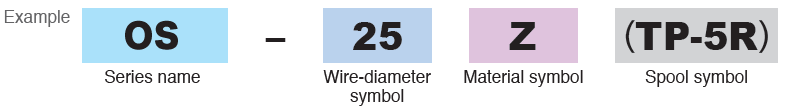

Rule of product naming

Wire diameter and characteristics

Wire diameter (mm) Diameter tolerance (mm) Tensile strength (MPa) Elongation (%)
0.07 - 0.30 ±0.001 900 or more 3.0 or less

Product lineup

Spool symbol Spool color Spool weight 0.07mm 0.10mm 0.15mm 0.20mm 0.25mm 0.30mm
P-3R Gray 1.5 or 3 ○ ○ ○ - - -
TP-5R Transparent 5 - - ○ ○ ○ ○
P-10RA Transparent 10 - - - ○ ○ ○
P-15RA Gray 20 - - - ○ ○ ○
K-160 * White 6 - - - ○ ○ ○
K-200 * White 15 - - - ○ ○ ○
  • * : DIN standard size spools ○: A standard stock product, --: A product on order
  • * : Please contact us for our lineup of other products.
  • * : Please refer to page 19 for spool specifications.
  • * : Stock status changes constantly, so please check when ordering.

OS-ZN wire

Features

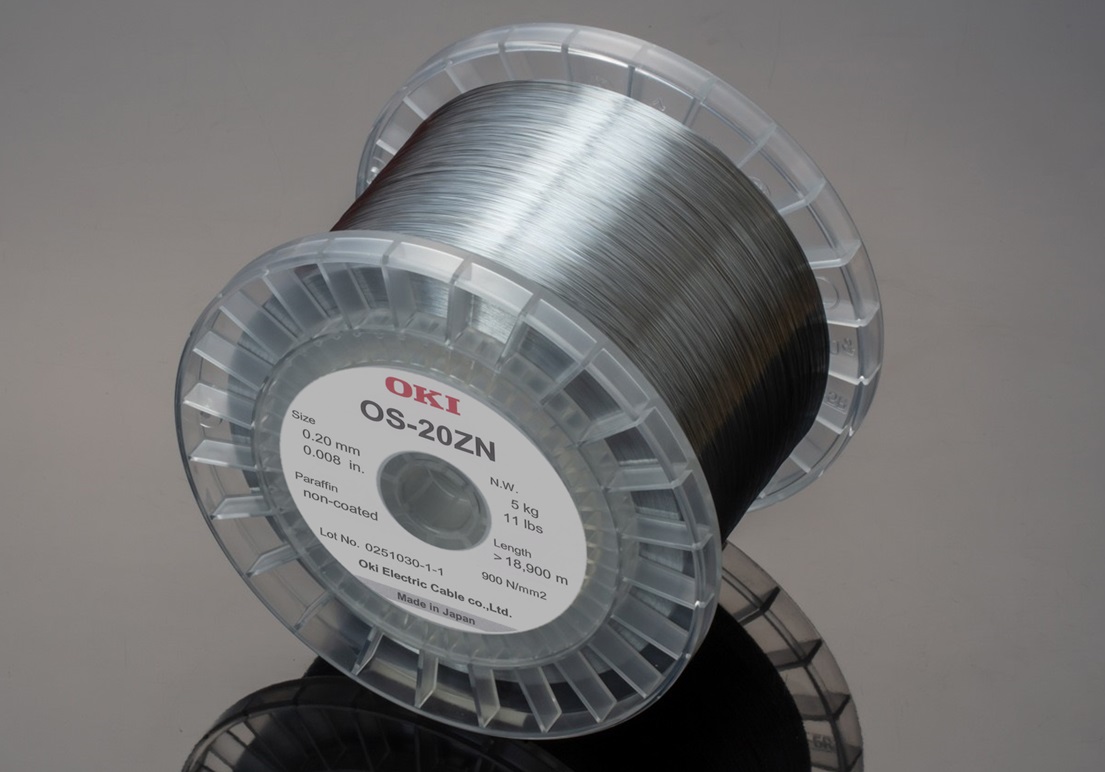

OS-ZN wire

  • The high purity zinc layer formed on the surface of the brass realizes higher machining speed.
  • By uniformly coating the surface of the wire with zinc, which has good discharge characteristics,finer discharge is possible and high performance is demonstrated in surface accuracy.
  • Almost no copper adheres to the workpiece.

Rule of product naming

Wire diameter and characteristics

Wire diameter (mm) Diameter tolerance (mm) Tensile strength (MPa) Elongation (%)
0.07 - 0.30 ±0.001 900 or more 3.0 or less

Product lineup

Spool symbol Spool color Spool weight 0.07mm 0.10mm 0.15mm 0.20mm 0.25mm 0.30mm
P-3R Gray 1.5 or 3 ○ ○ ○ - - -
TP-5R Transparent 5 - - ○ ○ ○ ○
P-10RA Transparent 10 - - - ○ ○ ○
P-15RA Gray 20 - - - ○ ○ ○
K-160 * White 6 - - - ○ ○ ○
K-200 * White 15 - - - ○ ○ ○
  • * : DIN standard size spools ○: A standard stock product, --: A product on order
  • * : Please contact us for our lineup of other products.
  • * : Please refer to page 19 for spool specifications.
  • * : Stock status changes constantly, so please check when ordering.
