Oki Electric Cable Develops Industry's First FPC For Three-dimension Wiring
- Maintains desired shape to fit in chassis or other embedded space -[Reference]
Sales plan for 3D FPC
- Samples available from:
- June 11, 2008
- Sales target:
- 10,000 cables/ month (when volume production)
- Sales price:
- Depends on specification
Major features

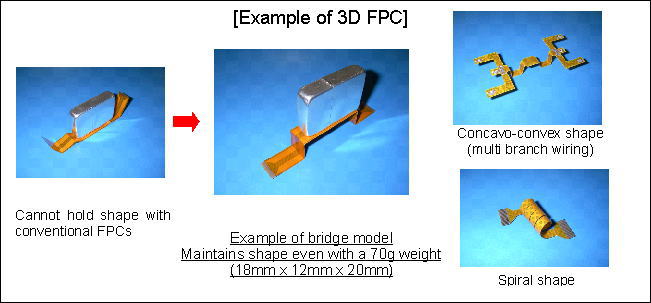

- Enable 3D wiring: Possible to form arbitrary shapes
- FPC structure: Two-sided FPC
- FPC thickness: Min 110µm
- Strength to keep shape: Over 500mN(Newton)
| Category |
Specification |
| Length (max) |
500mm |
| Width (max) |
230mm |
| Thickness (min) |
110µm |
| Coductor width (closest) |
50µm |
| Layer structure |
2 layers (two-sided) |
| Base material |
Copper foil: 18µm, Substrate (new): from 40µm |
| Insulating material |
Coverlay (Polyimide), Ink (epoxy system, polyimide system) |
| Surface |
Gold plate, solder plate, etc. |
