OKI's low outgas PVC cables

Meaning of outgas

OKI's low outgas PVC cables

This is gas emitted from various kinds of organic matter. Causes of outgas are considered to be the internal wiring of semiconductor manufacturing equipment, and also the cables used for the wiring of transportation robots in clean rooms, and so on. Organic matter brings about adhesion of contaminants to semiconductor wafers and liquid crystal panels, which constitutes a problem. Accordingly, Oki Electric Cable Co.,Ltd. has developed a PVC cable that suppresses the generation of gas.
Addition of the effect of contaminants that adhere to the lenses of optical equipment.

Main features

Concept of outgas

  • The amount of outgas generated is about 1/5th that of a conventional cable.
  • This cable conforms to the UL standard, and has a fire retardancy of VW-1.
  • We select the material of the cable according to your desired application (fixed part or moving part).
  • This product is environmentally friendly. The insulation and the covering do not contain specific bromide fire retardants (PBDE or PBB), or heavy metals such as Pb, Cr6+, Cd, or Hg.

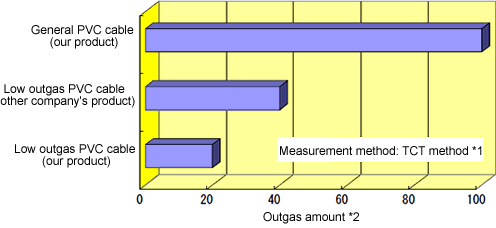

Comparison of amount of gas generated by different cables

Comparison of amount of gas generated by different cables

  • *1 : The sheath is heated to the specified temperature, the gas emitted is concentrated with a collector, and the gas from which the heat has been separated is measured using a gas chromatograph.
  • *2 : The amount of outgas is expressed based on 100 for a general PVC cable (our product).

Examples of representative types (robot cables)

For fixed parts

UL style 2464
Ratings 80degrees, 300V
Conductor 7/0.2 (AWG24)
Insulation ETFE
Sheath Low outgas PVC
Number of cores 2 to 50
Number of pairs 1 to 25
Cross-sectional view of cable Cross-sectional view of cable

For fixed parts

UL style 2464
Ratings 80degrees, 300V
Conductor 40/0.08 (AWG24)
Insulation ETFE
Sheath Low outgas PVC
Number of cores 2 to 50
Number of pairs 1 to 25
Cross-sectional view of cable Cross-sectional view of cable

In addition to the above, we can manufacture a variety of low outgas cables. For other cable specifications, please contact our sales department.
