USB 2.0 Interface Cables(UL758 Style20276)

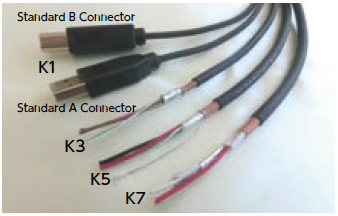

Overview

Specifications (structure and performance)

For movable wiring

Type		K1		K3L		K3
		Movable small-diameter type		Movable standard type (3m or less)		Movable high-durability type (3m or less)
Product model no.		MIX4C-SV-45150017 K1(U)K-M		MIX4C-WV-45150020 K3L(U)K-M		MIX4C-WV-45150016 K3(U)K-M
Wire type		Signal wire	Power wire	Signal wire	Power wire	Signal wire	Power wire
Conductor resistance Ω/km (20℃)		355 or less	206 or less	355 or less	66 or less	355 or less	66 or less
Insulation resistance MΩ·km (20℃)		50 or more	50 or more	50 or more	50 or more	50 or more	50 or more
Withstand voltage V-min		AC 500	AC 500	AC 500	AC 500	AC 500	AC 500
Maximum transmission distance (m)		1		3		3

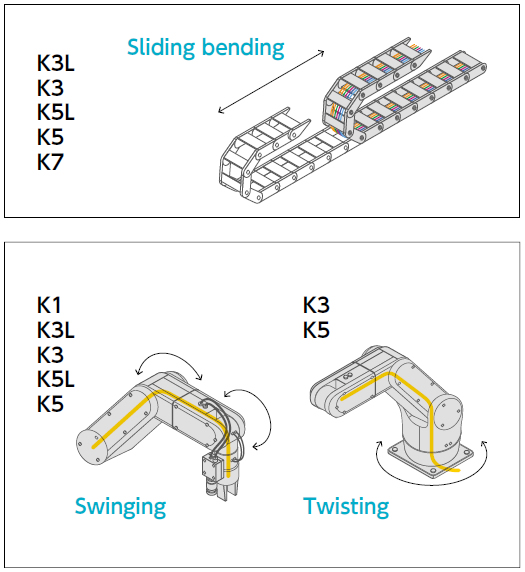

Movability performance *2	Sliding	-		1 million times or more (R=50mm)		5 million times or more (R=50mm)
	Tilting	1 million times or more (R=30mm)		1 million times or more (R=30mm)		1 million times or more (R=30mm)
	Twisting	-		-		1 million times or more (Span L: 500 mm)
Cross section
Lengths available (m)		100		100		100

Type		K5L		K5		K7
		Movable standard type (5m or less)		Movable high-durability type (5m or less)		Movable high-durability type (7m or less)
Product model no.		MIX4C-WV-45150019 K5L(U)K-M		MIX4C-WV-45150015 K5(U)K-M		MIX3C-SV-45150018 K7(U)K-M
Wire type		Signal wire	Power wire	Signal wire	Power wire	Signal wire	Power wire
Conductor resistance Ω/km (20℃)		206 or less	40 or less	206 or less	40 or less	180 or less	40 or less
Insulation resistance MΩ·km (20℃)		50 or more	50 or more	50 or more	50 or more	50 or more	50 or more
Withstand voltage V-min		AC 500	AC 500	AC 500	AC 500	AC 500	AC 500
Maximum transmission distance (m)		5		5		7 *1
Movability performance *2	Sliding	1 million times or more (R=50mm)		5 million times or more (R=50mm)		10 million times or more (R=50mm)
	Tilting	Tilting 1 million times or more (R=30mm)		1 million times or more (R=30mm)		-
	Twisting	-		1 million times or more (Span L: 500 mm)		-
Cross section
Lengths available (m)		100		100		100

• *1 : For lengths longer than 5 meters, the propagation delay time and voltage drop are not compliant with the USB 2.0 standard.
• *2 : We use proprietary test conditions and methods. These data are for reference only and are not guaranteed values.

lineup of products with features and characteristics according to transmission distance and movable durability. This product is sold as the cable only.

For fixed wiring

Type	H3
	Fixed type
Product model no.	USB I/F CABLE #24
Wire type	Signal wire	Power wire
Conductor resistance Ω/km (20℃)	222 or less	90.9 or less
Insulation resistance MΩ·km (20℃)	2 or more	2 or more
Withstand voltage V-min	AC 500	AC 500
Maximum transmission distance (m)	3
Cross section
Lengths available (m)	100

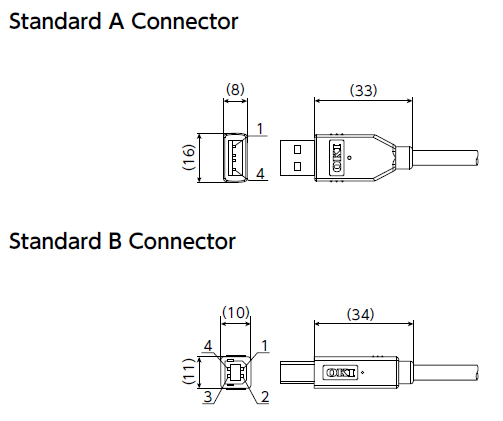

Introduction to connector processing

Processed products can also be delivered with connectors attached. Please contact us for details.

---
