Category 5E cable (stranded wire) TPMC-C5e350 series
Applications
This cable conforms to the TIA/EIA-568-B.2 category 5e patch cord standard. It is intended for connecting patch panels in MDF or IDF to each other, connecting outlets and terminal equipment to each other, and so on.
Features
- The patch cord uses stranded wire conductors, making for excellent flexibility.
- A special conductor is used, resulting in excellent attenuation characteristics.
- The covering is available in nine colors, facilitating classification of the wiring as well as maintenance work.
- This cable conforms to the RoHS standard.
Shape
| Item name symbol | 4P TPMC-C5e350 (Color symbol)*1--Length*2 | |
|---|---|---|
| Conductor | AWG24 (7/0.2mm) Soft copper stranded wire | |
| Insulator | Polyethylene | |
| Number of pairs | 4 pairs | |
| Sheath materia | PVC | |
| Cord O.D. mm | 5.5 | |
| Cable color (Color symbol) *1 | Green (G) , Blue (B), Red (R), Orange (O), Yellow (Y), Violet (V), Dark Blue (DB), White (W), Gray (S) |
|
| Standard length *2 m | Cable fitted with plug | 1.0/1.5/2.0/2.5/3.0/5.0 |
| Individual cable | 250 (Bundle winding) | |
| Plug | OKI Cat5e eco-plug (Item name symbol:88SH52A-0107G) | |
| Boots | Eco-clear boots (Item name symbol:MP88 plug boots) | |
| Construction diagram |  |
|

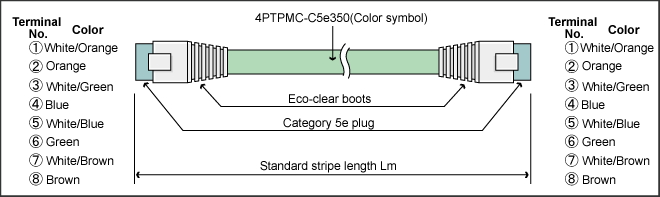

| Outside drawing | Drawing below | |
- *1 :When ordering a cable, specify the color symbol and the cord length (m) (use the length in the above table as a standard).
- *2 :We sell this product both fitted with plugs and also as an individual cable (standard length 250m).
- *3 :We also accept orders for link cords consisting of AWG24 (0.5mm) single wire conductors.
