Category 6 cable (stranded wire) TPMC-C6X series
Applications
This cable supports the TIA/EIA-568-B2-1 category 6 patch cord standard. It is intended for connecting patch panels in MDF or IDF to each other, connecting outlets and terminal equipment to each other, and so on.
Features
- The patch cord uses stranded wire conductors, making for excellent flexibility.
- An X-shaped intervention is used, resulting in excellent crosstalk characteristics.
- The core wire arrangement and connection conform to the TIA/EIA-568-B standard.
- This cable uses a category 6 modular plug, enabling a high quality Gigabit Ethernet system to be configured.
- This cable has downward compatibility with enhanced category 5.
- This cable conforms to the RoHS standard.
Category / Construction (TPMC-C6X series)
| Item name symbol | 4P TPMC-C6X (Color symbol)*1--Length*2 | |
|---|---|---|
| Conductor | AWG24 Soft copper stranded wire (7/0.2) | |
| Insulator | Polyethylene | |
| Number of pairs | 4 pairs | |
| Sheath materia | PVC | |
| Cord O.D. mm | 6.0 | |
| Cable color (Color symbol) *1 | Green (G) , Blue (B), Red (R), Orange (O), Yellow (Y), Violet (V), Dark Blue (DB), White (W), Gray (S) |
|
| Standard length *2 m | Cable fitted with plug | 1.0/1.5/2.0/2.5/3.0/5.0 |
| Individual cable | 250 (There is no need to indicate the item name.) | |
| Matching plug | RJ-45 Category 6 plug (SP688 made by Panduit) | |
| Construction diagram |  |
|
| Outside drawing (Straight cable) | Diagram below | |
- * : When ordering, please specify the color symbol and the cord length (m) (use the length in the above table as a standard).
We also sell this product as an individual cable (standard length 250m).
We also accept orders for link cords consisting of AWG24 (0.5mm) single wire conductors.
The standard plug is the SP688 made by Panduit (please consult us for other kinds of plugs).

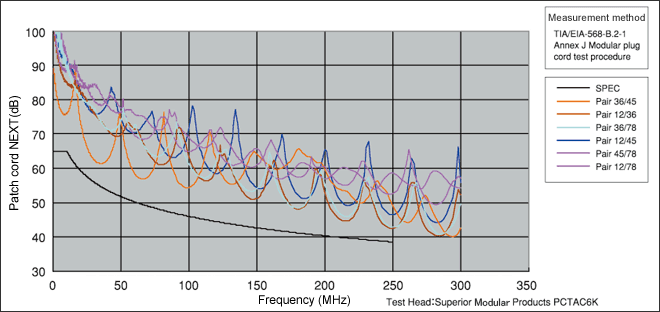

Characteristics example (TPMC-C6X Patch cord characteristics)
Straight cables and cross cables for patch cords
Type of patch cords
- Patch cords are classified as straight cables and cross cables depending upon their connections and arrangement. A straight cable has one modular plug on each end. There are three types of cross specifications for cross cables which differ depending upon the particular application (for the case of the Ethernet method).
Configuration of a cross patch cord
The connections and arrangement of the cross patch cords are shown below.
Other
Cross patch cord configurations other than those for the Ethernet method differ from the above, so please consult us separately.
