High bending resistance HPCF fiber optic cable

Outline

High bending resistance HPCF fiber optic cable

This highly flexible fiber optic cable consists of a quartz glass core and also a clad part made of hard plastic resin that has low refractive index.

Features

  • The core part has a large diameter (200m), resulting in efficient bonding between the light receiving and light sending elements. Also, the clad part is tough and thermally stable, enabling the optical cable to be handled very easily.
  • The optical fiber is of an SI (step index type) construction, and is suitable for transmitting signals over short to medium distances.
  • This cable conforms to the RoHS standard.

Applications

  • This cable is suitable for equipment where high noise immunity and suppression of noise emission are required, in parts of FA, such as a robot, where flexibility is required.
  • It is also suitable for use on vehicle-mounted equipment (MOST, IDB-1394, etc.) where high-speed transmission and high heat resistance are required.

Specifications

Transmission loss (λ) 650nm 1.9dB/100m Tensile strength 735N
800 to 850nm 1.1dB/100m Allowable bending radius 80mm
Number of openings 0.4 Repetitive bending strength 1,000,000 or more
(φ100mm No load)
Transmission band
(λ=800 to 850nm)
10MHz/km Applicable connector JIS F05/JIS F07
  • * : The bending characteristics of HPCF fiber optic cable are set out in detail in the technical data.

Construction

Core O.D. 200µm Cord color black
Cladding O.D. 230µm Sheath O.D. 7.6mm
Core wire O.D. 0.9mm Sheath material PVC
Cord O.D. 2.2mm Sheath color black

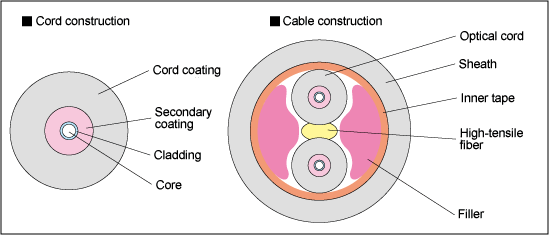

Construction

Type

Item name High bending resistance HPCF fiber optic cable
Type No Cable SI type PCK202HPX
With connector SI type OPC201HPX-LMB
  • * L: Enter the cable length (m).

Bending characteristics of HPCF fiber optic cable
