Category 5E cable (single wire) DTI-C5e350 series

Floor type (horizontally laid) cable, multi-pair vertically laid cable

Applications

Category 5E cable (single wire)

This is a high-speed LAN cable that supports 10BASE-T — 1000BASE-T.

Features

  • This cable support 1000BASE — T (Gigabit Ethernet).
  • It is of a construction that suppresses multiplex crosstalk attenuation (PowerSum NEXT).
  • It conforms to the enhanced category 5 standard, and supports 1000BASE-T.
  • It has excellent flexibility.
  • 4-pair, 8-pair, 16-pair, and 24-pair cables are available
  • 18-pair and 24-pair cables are also available as inner sheath types, enabling the wires to be branched in groups of 4 pairs.
  • Cables are packaged using the "OKI 8 winding" method, which enables a cable to be removed without opening the box (4-pair cables only).
  • This cable conforms to the RoHS standard.

Category / Specifications

Inner sheath Shield Item name symbol Number of pairs *1 Conductor Sheath Standard stripe length m Estimated weight kg/km Packaged form
Material O.D. mm Color
(Color symbol)
*3
No No 0.5 4P DTI-C5e350
(Color symbol)
4 AWG24
(0.5mm single wire)
PVC 5.1 Green (G)
Blue (B)
Red (R)
Orange (O)
Yellow (Y)
Violet (V)
Dark Blue (DB)
White (W)
Gray (S)
300 30 Wound in a figure of 8
0.5 8P DTI-C5e350
(Shaped like a figure of 8)
(Color symbol)
8 11.5x5.5*2 500 70 Wooden drum winding
0.5 16P DTI-C5e350
(Color symbol)
16 13.0 135
0.5 24P DTI-C5e350
(Color symbol)
24 14.3 170
Yes 0.5 4P DTI-C5e350
(SLA)
(Color symbol)
4 6.3 300 40 Bundle winding
Yes No 0.5 16P DTI-C5e350 IS
(Color symbol)
16 14.0 Green (G)
Blue (B)
300 170 Wooden drum winding
0.5 24P DTI-C5e350 IS
(Color symbol)
24 17.0 250
  • *1 :For numbers of pairs other than these, please consult us separately.
  • *2 :Minor diameter x major diameter (Refer to following diagram)
  • *3 :Please specify the color symbol when ordering.
  • * :We can also make LAP sheath cables for outdoor applications.

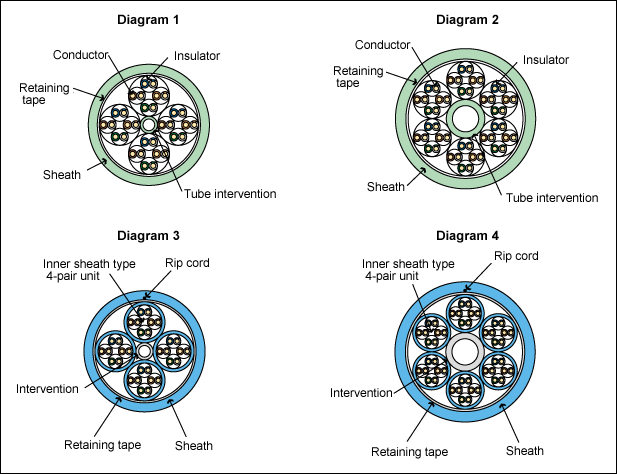

Construction diagram

Inner sheath Shield 4 pairs 8 pairs (Shaped like a figure of 8) 16 pairs 24 pairs
No No 4 pairs, No 8 pairs (Shaped like a figure of 8) Fig.1 below Fig.2 below
Yes 4 pairs, Yes
Yes No Fig.3 below Fig.4 below

Construction diagram

Cable characteristics table

Frequency
(MHz)
IL Standard value
dB/100m
IL Typ. NEXT Standard value NEXT Typ. PSNEXT Standard value PSNEXT Typ.
(dB/100m) (dB/100m) (dB) (dB) (dB) (dB)
1.00 2.04 1.70 65.30 87.92 62.31 80.08
4.00 4.05 3.77 56.27 81.50 53.28 76.53
9.99 6.47 6.03 50.30 71.35 47.31 64.89
19.98 9.27 8.64 45.78 68.80 42.80 60.83
25.01 10.42 9.73 44.33 67.49 41.35 60.33
35.00 12.45 11.70 42.14 62.84 39.15 56.89
59.82 16.62 15.45 38.63 63.24 35.64 54.33
99.90 21.98 20.38 35.30 52.32 32.31 46.65
Frequency
(MHz)
ELFEXT Standard value
dB/100m
ELFEXT Typ. PSELFEXT Standard value PSELFEXT Typ. RL Standard value RL Typ.
(dB) (dB) (dB) (dB) (dB) (dB)
1.00 63.80 82.29 60.80 71.31 20.00 37.77
4.00 51.6 74.50 48.76 68.03 23.01 39.82
9.99 43.80 60.80 40.80 55.56 25.00 38.67
19.98 37.78 59.31 34.78 51.50 25.00 39.88
25.01 35.84 55.90 32.84 48.93 24.32 40.57
35.00 32.92 52.70 29.92 46.50 23.30 32.76
59.82 28.24 49.46 25.24 37.96 21.67 33.85
99.90 23.80 31.25 20.80 24.93 20.11 32.07
  • * :The Typ. values are examples of measured values. They vary depending upon the measurement conditions.

Packaged form (4-pair cable)

Packaged form (4-pair cable)

  • A cable can be removed without opening the box.
  • Several cables can be wired at the same time without becoming entangled.
  • The work efficiency rises, and particularly the cables can be effectively passed through a duct.
  • The box can be held by one of the grips, enabling it to be carried about using one hand.
