Low outgas cables Outline etc
The cable can be customized to use electric wire, or even optical fiber, according to the requirements. The amount of outgas is less than 1/5 that of conventional PVC cable.
Outline
Gas escaping from the coating materials of cables used in the clean rooms of semiconductor device manufacturers has been adversely affecting semiconductor products, as well as the lenses used in the production equipment. This PVC low-outgas cable suppresses the problematic gas that escapes from the coating materials of the cable.
Features
- The amount of outgas is reduced to about 1/5 that of conventional cables.
- Materials are selected according to the type of equipment used (fixed or movable).
- Conforms to the UL standard and has VW-1 flame-resistance characteristics.
- This is an environmentally compatible product.
- This cable conforms to the RoHS standard.
Applications
- Used for the wiring of conveyor robots used in clean rooms.
- Used for the internal wiring of semiconductor manufacturing equipment.
- Used for the internal wiring of optical inspection equipment that houses an optical lens.
Specification
Concept of outgas

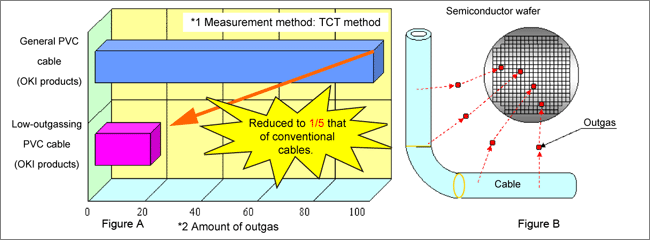

As shown in Figure B, a semiconductor wafer can become damaged due to the gas generated by the coating materials of the cable. This is because the ever-increasing minuteness of semiconductor manufacturing process technology does not allow the effect of gas adhesion to be ignored. A wide range of low-outgas cable types are now required for clean rooms, from various control cables to network and power cables.
What is Low outgas cables
The cables are not contain following outgas materials: Phthalate/Siloxane/Phosphate
Spec.
80 degree and 105 degree heat resistant UL cable (UL2464,UL2570 etc.)

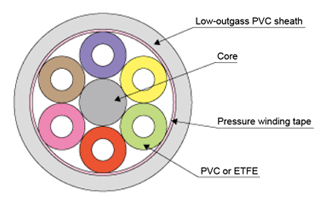

Cable Structure
| Fixed part area | Movable part area | ||
|---|---|---|---|
| UL Style | 2464 | UL Style | 2464 |
| Rating | 80degrees 300V | Rating | 80degrees 300V |
| Conductor | 7/0.2(AWG24) | Conductor | 40/0.08(AWG24) |
| Insulation | ETFE | Insulation | ETFE |
| Sheath | Low-outgas PVC | Sheath | Low-outgas PVC |
| No. of Cores | 2 to 50 Cores | No. of Cores | 2 to 50 Cores |
| No. of Pairs | 1 to 25 Pairs | No. of Pairs | 1 to 25 Pairs |
| Cable Structure |
|
||
This structure is the example, OKI cable can make customized cable according to the requirements.
