Enhanced category 5 cable for eco-LAN (EM-DTI-C5e350)

Outline

Enhanced category 5 cable for eco-LAN (EM-DTI-C5e350)

This is a non-halogen fire retardant sheath cable which uses double polyethylene insulation and TIA/EIA standard core identification.

This cable conforms to the RoHS standard.

Applications

This is a high speed LAN cable which supports 10BASE-T - 1000BASE-T.

Standard

TIA/EIA-568-B enhanced category 5 cable

Product name symbol

0.5 (conductor size) 4P (number of pairs) EM-DTI-C5e350 (color symbol)

Specifications / Construction

Item Performance
Conductor resistance Ω/100m (20degrees) 9.38 or less
Withstand voltage V DC 500 or AC 350
Insulation resistance MΩkm 5,000 or more
Characteristic impedance ZoΩ 100 +/-15
(1 to 100MHz)
Return loss (RL) dB 20 or more (100MHz)
Attenuation IL dB/100m 22 or less (100MHz)
Multiplex near-end crosstalk attenuation
PSNEXT dB
32.3 or more (100MHz)
Propagation delay time difference
Delay Skew ns/100m
45 or less (100MHz)

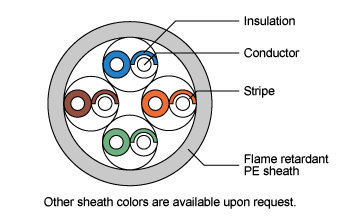

Construction example (4 pairs)
Construction example (4 pairs)

Conductor Size Number of pairs
Insulator O.D. (mm) Cable O.D. (mm) Estimated mass (kg/km) Standard stripe length (m) Sheath color Package
AWG24 4 0.9 5.3 28 300 Gray, Green, Blue Wound in a figure of 8
8 0.93 11.5 × 5.5*1 70 500 Wound on wooden drum
24 14.5 170 500
  • *1 : Minor diameter x major diameter
Conductor Size
(mm)
Insulator O.D.
(mm)
Cable O.D.
(mm)
Estimated mass
(kg/km)
Standard stripe length
(m)
Sheath color Package
AWG24 (7/0.2) 1.0 5.5 32 250 Gray, green, blue Bundle winding

Characteristics example

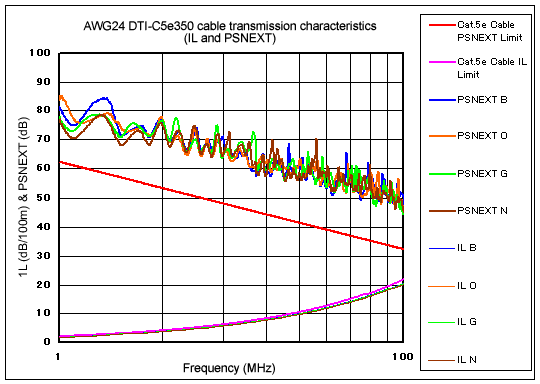

AWG24 DTI-C5e350 cable transmission characteristics (IL and PSNEXT)
