Category 6 cable for eco-LAN (EM-DTI-C6X)
Outline
This cable employs TIA/EIA standard core identification and a twisted pair construction. It uses polyethylene insulation and has a non-halogen flame retardant polyethylene sheath.
This cable conforms to the RoHS standard.
Applications
This is an environmentally friendly high-speed LAN cable that supports Gigabit Ethernet.
Standard
TIA/EIA-568-B. 2-1 category 6 cable
Item name symbol
AWG24 (conductor size) 4P (number of pairs) EM-DT1-C6X (color symbol)
Specifications
| Item | Performance |
|---|---|
| Conductor resistance W/100m (20degrees) | 9.38 max |
| Withstand voltage V | DC 500 or AC 350 |
| Insulation resistance M Ω km | 5000 min |
| Characteristic impedance Zo Ω | 100 +/- 15 (1 to 250MHz) |
| Return loss (RL) dB | 17.3 min (250MHz) |
| Loss (IL) dB/100m | 32.8 max (250MHz) |
| Multiplex near-end crosstalk loss PSNEXT dB |
36.3 min (250MHz) |
| Propagation Transmission delay time difference Delay Skew ns/100m |
45 max (250MHz) |

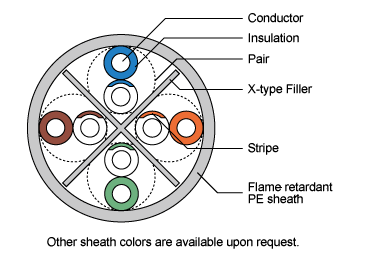

Construction example (4 pairs)
| Conductor Size (mm) | Number of pairs | Insulator O.D. (mm) | Cable O.D. (mm) | Estimated mass (kg/km) | Standard stripe length (m) | Sheath color | Packed form |
|---|---|---|---|---|---|---|---|
| AWG24 (0.5) | 4 | 1.0 | 6.4 | 38 | 300 | Gray, green, blue | Paper eco-bobbin |
| 24 | 1.1 | 20.8 | 310 | 500 | Wound on wooden drum |

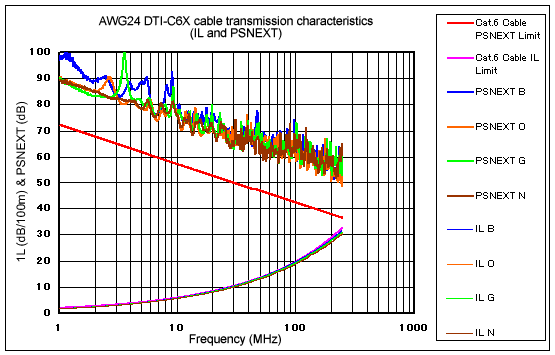

Characteristics example
