ecoSurge*1 C

Outline

Surge suppression cable

Pulse drive is used in a control motor, for example, so reflected waves resulting from impedance mismatching between the cable, motor, and control section are superimposed on the signal, resulting in surges which become high voltage noise surges.
Surges contain high voltage components that are at least twice the normal drive voltage, so it is possible that the insulation may break down, stop functioning, or deteriorate, for example. It is therefore necessary to take measures against noise generation.

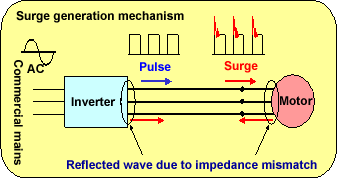

Surge generation mechanism

Features

  • The motor drive cable contains a surge suppression wire, and also there is no need for externally mounted high voltage or high current components, thus realizing low cost and space saving.
  • The O.D. of the cable is roughly of the same order as that of conventional products.
  • The absorbed surge is transformed into heat by means of the suppression wire, and the heat is dissipated by the entire cable , so there are no hot spots.
  • In contrast to the existing filter method which is used to pass the drive signals, this cable enables surges alone to be filtered, hence there is no voltage attenuation of the drive signal.
  • The cable permits EMI countermeasures due to surge suppression.
  • Waveform distortion is small, permitting high speed development.
  • This cable conforms to the RoHS standard.

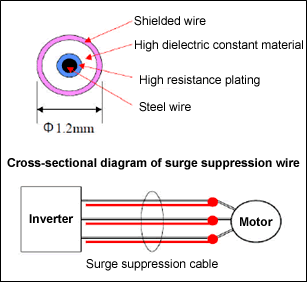

Cross-sectional diagram of surge suppression wire

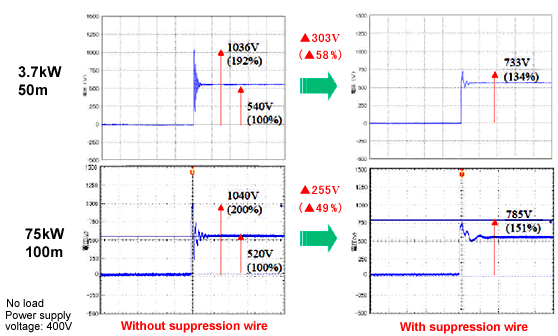

Performance

Performance

Surge suppression efficiency demonstration movie

This is the demonstration movie which shows the actual efficiency of the surge suppression by viewing the measured surge waveforms on an oscilloscope. An actual surge waveforms are generated at the inverter motor drive system and OKI's surge suppression cables effects the reduction on the surge generation.

Please click followings:

Surge suppression efficiency demonstration

Applications

  • Prevention of motor impediment
  • Maintenance of motor of normally used system
  • Optimum for water pumping, and systems inside factories
  1. Transformer (water pumping motor)
  2. Steelworks (machining motor)
  3. Hospital (air conditioning motor)
  4. Super (air conditioning motor)
  5. Elevator (traction motor)

Specifications

Item Surge suppression wire Motor drive wires
Conductor Classification Special plated copper alloy 2mm2 3.5mm2 5.5mm2 8mm2
Structure core wires/mm 1/0.24 37/0.26 45/0.32 70/0.32 50/0.45
Insulator Color Natural Red, white, black, green
O.D. standard mm 0.81 3.4 4.1 5.1 6.1
Shield O.D. standard mm 1.2
Sheath Classification Soft, oil resistant PVC
Color Black (OKI color symbol: K)
Thickness standard mm 1.8 2.0 2.1 2.3
O.D. standard mm Standard12.0 Standard14.0 Standard16.5 Standard19.5
Completed product Standard length m   100
Electrical characteristics (drive wires) Conductor resistance
Ω/Km max
10.4 5.65  3.63  2.57
Insulation resistance MΩ km 1 min 50 40 40 40
Withstand voltage V-min AC2500 AC1500 AC1500 AC1500 AC1500
Surge generation voltage
(400 VAC 3-phase)
1000V max
(Surge generation ratio 50% max)
Measurement point: Between each of U, V, and W phases at the motor input terminals
Drive conditions: Inverter input voltage: 480 VAC max (50Hz)
Inverter carrier frequency ≤ 15 KHz Drive cable length 100m max

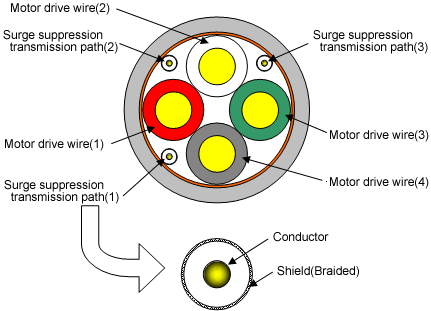

Construction

Construction

  • *1 : "ecoSurge" is a registered trademark of Oki Electric Cable Co., Ltd.
