Flat shielded type OKIFLEX
Features
- The outside of a bridge type OKIFLEX is wrapped with aluminum laminate tape and sheathed for noise immunity and minimization of crosstalk.
Applications
Optimum for wiring between different equipment such as computers, peripheral equipment, communication equipment, and office equipment, and also internal fixed wiring, particularly fixed wiring that requires EMI countermeasures.

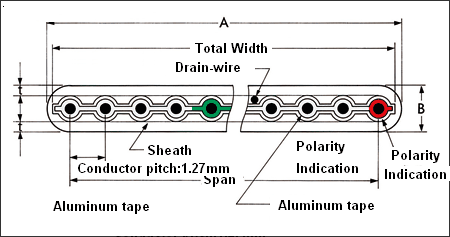

Shape
Characteristics example
| Conductor resistance Ω/km (20degrees) | 222(MAX) | Characteristic impedance Ω | 43(STD) |
|---|---|---|---|
| Insulation resistance -km (20degrees) | 5(MIN) | Propagation delay*1 ns/m | 5.4(STD) |
| Withstand voltage Vrms/min | 1500(MINI) | Near-end crosstalk*1 % | 3.1(STD) |
| Capacitance*1 pF/m | 153(STD) |
- *1 : The measured core wire is according to the SG mode (G and the shield are common).
Product name and color of conductor
| FS-FLEX-B ( )-7/0.127 ALV(30M)K | Red-Gray-Gray-Gray-Green… 1st core wire =Red, 5nth core wire =Green,Others=Gray |
|---|
- * :Enter the number of core wires according to the type configuration table below in ( ).
Type configuration table
| Number of cores | Conductor | Insulator | Span mm | Total width mm | A mm | B mm | t mm | Conductor pitch mm | Standard length |
|---|---|---|---|---|---|---|---|---|---|
| 10 | AWG28 (7/0.127) | Soft PVC | 11.43 | 12.70 | 16.0 | 3.0 | 1.0 | 1.27 | 30m/reel |
| 14 | 16.51 | 17.78 | 21.2 | ||||||
| 16 | 19.05 | 20.32 | 22.6 | ||||||
| 20 | 24.13 | 25.40 | 28.7 | ||||||
| 24 | 29.21 | 30.48 | 33.8 | ||||||
| 25 | 30.48 | 31.75 | 35.1 | ||||||
| 26 | 31.75 | 33.02 | 36.3 | ||||||
| 30 | 36.83 | 38.10 | 40.1 | ||||||
| 34 | 41.91 | 43.18 | 46.5 | ||||||
| 36 | 44.45 | 45.72 | 49.0 | ||||||
| 37 | 45.72 | 46.99 | 50.2 | ||||||
| 40 | 49.53 | 50.80 | 54.0 | ||||||
| 50 | 62.23 | 63.50 | 66.8 | ||||||
| 60 | 74.93 | 76.20 | 79.5 | ||||||
| 64 | 80.01 | 81.28 | 84.6 |
