OKIFLEX with sheath (UL20266)

UL STYLE NO.20266 80degrees 150V

Features

OKIFLEX with sheath

  • This is a sudare type OKIFLEX cable which has been rolled into a circular shape and covered with a sheath. It is therefore ideal for wiring in inside a complicated console layout as well as for wiring between different equipment. A shielded version is also available.
  • CSA mark printed products can also be produced to order.
  • This product is environmentally friendly. The insulator and sheath material do not contain specific bromide-based flame retardant (PBDE or PBB) or the heavy metals Pb, Cr6+, Cd and Hg. They also conform to the RoHS (restriction of the use of certain hazardous substances in electrical and electronic equipment) regulations.

Applications

Ideal for connecting equipment such as computers, peripheral equipment, communication equipment, and office equipment, to each other and also for internal fixed wiring.

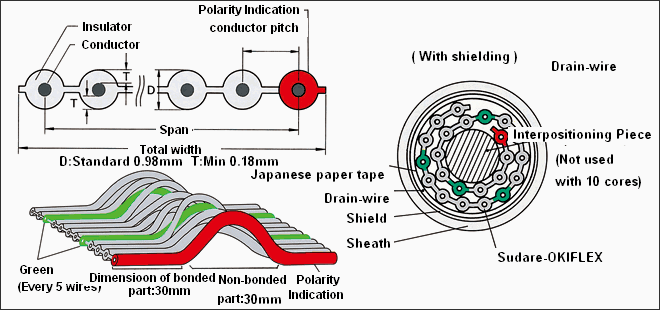

Shape

Shape
