Bending characteristics of HPCF fiber optic cable

Repetitive bending test

Test sample: OPC201HPX

Test method Bending angle +/-90degrees
Load 2kg
Bending radius 50mm
Measurement wavelength 800nm(LED)
Bending rate 60 cycles/minute

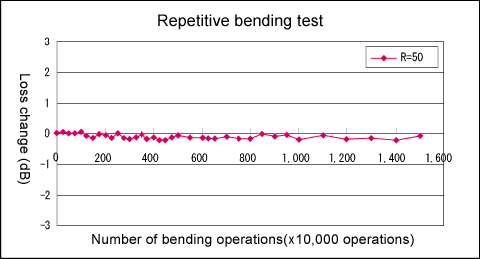

Repetitive bending test

Cable bare sliding and bending test

Test sample: OPC201HPX

Test method Bending radius 30mm, 50mm
Bending rate 90cycles/minute
Measurement wavelength 800nm(LED)

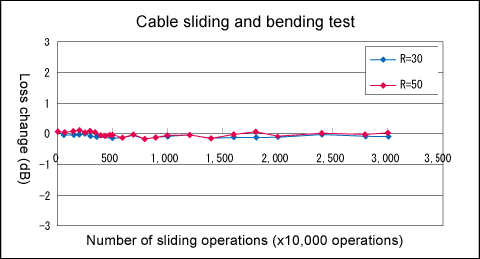

Cable sliding and bending test

The data values shown above were obtained using our measuring equipment. They are not guaranteed values.
