Robot Cable Evaluation Method by OKI

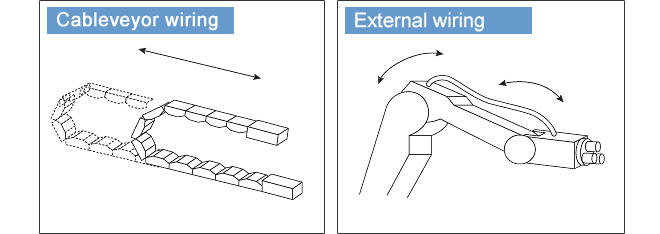

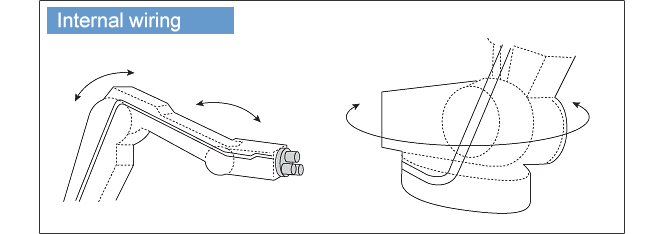

Robot Equipment Movable Area
- Robot Equipments are in the very tough circumstances such as requested and repeated to be bended, twisted and sliding.
- Oki Electric Cable achieved "Durability Test" considering such tough situation and keep high standard quality standard.
Movable Cable Durability Test Equipments
High-bending, frequent twisting and high-sliding reputation are required for Robot Cables, Oki Electric Cable has various kinds of testing equipments which are suitable for each "Durability Test".
| Bending Test Equipment | |
|---|---|
| Bending R | 10mm |
| 12.7mm | |
| 20mm | |
| 30mm | |
| 50mm | |
| Bending Angle | +/-90degrees |
| +/-120degrees | |
| +/-180degrees | |
| Bending Speed | 60times/min.(MAX) |
| Count | One back and forth |
| Movable Bending Test Equipment | |
|---|---|
| Pulley Diameter | 60mm |
| 80mm | |
| 100mm | |
| 120mm | |
| 200mm | |
| Moving Distance | 1.5m |
| Moving Speed | 5times/min.(MAX) |
| Count | One back and forth |
| Sliding Test Equipment (Cable walls) | ||
|---|---|---|
| Outer Diameter | 30φ or less | 9φ or less |
| Moving Distance | 1.5m | 350mm |
| Moving Speed | 15times/Min.(MAX) | 70times/Min.(MAX) |
| Bending R | 63mm | 20mm to 60mm (5mm pitch) |
| 100mm | ||
| 125mm | ||
| 200mm | ||
| Count | One back and forth | |
| Twisting Test Equipment | |
|---|---|
| Twisted Angle | +/-180degrees (Fixed) |
| Span X | 300mm, 500mm |
| Twisted Speed | 15 times/Min. (Fixed) |
| Count | One back and forth |
