Category 6 patch cord for eco-LAN
Outline
This is a high performance patch cord that uses category 6 plugs and employs twisted wire conductors, TIA/EIA standard core identification, and a twisted pair configuration. It uses polyethylene insulation and has a non-halogen flame retardant polyethylene sheath.
This cable conforms to the RoHS standard.
Applications
This is an environmentally friendly high-speed LAN cable that supports Gigabit Ethernet. It can be used for making patch panel connections in MDF and/or IDF, and also making connections between outlets and terminal equipment.
Standard
TIA/EIA-568-B. 2-1
Item name symbol
4P (number of pairs) EM-TPMC-C6X (color symbol)-L*1
- *1 :(See the specifications below)
Specifications / Construction

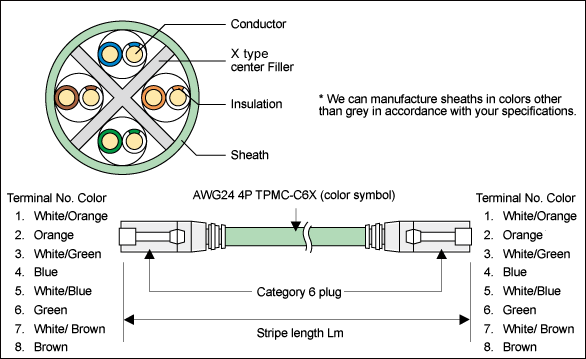

| Item | Performance | Construction example (4 pairs) |
|---|---|---|
| Conductor resistance W/100m (20degrees) | 9.38 max | See the diagram below |
| Withstand voltage V | DC 500 or AC 350 | |
| Insulation resistance M Ω km | 5000 min | |
| Characteristic impedance Zo Ω | 100 +/-15 (1 to 250MHz) |
|
| Return loss (RL) dB | 17.3 min (250MHz) | |
| Loss (IL) dB/100m | 32.8 max (250MHz) | |
| Multiplex near-end crosstalk loss PSNEXT dB |
36.3 min (250MHz) | |
| Propagation Transmission delay time difference Delay Skew ns/100m |
45 max (250MHz) |
- *1 : The standard connection is T568B straight, but cross connections and other kinds of connections are also available upon request.
- *2 : The standard stripe lengths of the completed product are 1.0, 1.5, 2.0, 3.0, and 5.0m, but other lengths are available as well.
- *3 : The standard plug is SP688 manufactured by Panduit. (Please consult with us for other plugs.)
| Conductor Size (mm) | Number of pairs | Insulator O.D. (mm) | Cable O.D. (mm) | Estimated mass (kg/km) | Standard stripe length (m) | Sheath color | Packed form |
|---|---|---|---|---|---|---|---|
| AWG24 (0.5) | 4 | 1.0 | 5.5 | 40 | 250 | Gray, green, blue | Bundle winding |
