Eco-thin I/O cable (UL21100)
UL Style No.21100 80degrees 30V
Features

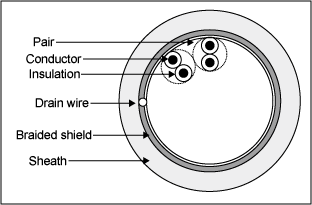

Layout and identification of core wires
- The degree of flexibility, flame retardant characteristics and electrical characteristics are the same as those of the conventional (PVC) product, despite the fact that polyolefin resin, which is a non-halogen material, is used.
- This product is environmentally friendly. The materials of the insulation and sheath, and also the conductors, intervention, drain wire, and braided shield, do not contain specific bromine-based flame retardants (PBB, PBDE), halogen compounds, or the heavy metals Pb, Cr6+, Cd, and Hg. It also conforms to the RoHS regulations (which limit the use of specific substances contained in electrical and electronic equipment).
Applications
- Used inside equipment such as computers, peripheral equipment, communication equipment, and office equipment, and also used to connect equipment to each other.
- Permits connection to a pressure-welded type half-pitch connector.
Construction
Characteristics
| Conductor resistance Ω/km (20degrees) | 222 or less | Characteristic impedance Ω | Standard 50 |
|---|---|---|---|
| Insulation resistance MΩ/-km (20degrees) | 1 or more | Propagation delay*1 ns/m | Standard 5.1 |
| Withstand voltage Vrms/min | 350 | Near-end crosstalk*1 % | Standard 4.5 |
| Capacitance*1 pF/m | Standard 98 | Flame retardant characteristics | VW-1 |
- *1 :Based on single end
Method of expressing product name
7/0.127 ( a ) P PE- ( b )
Indicate a logarithm based on the following Type Structure table in (a), and the existence or otherwise of a braid shield (FR: without shield, SFR: with braided shield in (b).
Type configuration table
All these products become the order production goods.
| Number of pairs | Number of core wires | Conductor | Insulator | Insulator O.D. (mm) | Sheath material | Sheath thickness (mm) | Sheath O.D. (shielded) (mm) |
|---|---|---|---|---|---|---|---|
| 5 | 10 | AWG28 (7/0.127) |
Polyolefin | 0.58 | Polyolefin resin | 0.9 | 5.2 |
| 6 | 12 | 5.5 | |||||
| 7 | 14 | 5.5 | |||||
| 8 | 16 | 6.0 | |||||
| 10 | 20 | 6.1 | |||||
| 13 | 26 | 6.5 | |||||
| 14 | 28 | 6.5 | |||||
| 17 | 34 | 6.9 | |||||
| 18 | 36 | 7.0 | |||||
| 20 | 40 | 7.2 | |||||
| 25 | 50 | 8.0 | |||||
| 30 | 60 | 8.2 | |||||
| 32 | 64 | 8.3 | |||||
| 34 | 68 | 8.7 | |||||
| 40 | 80 | 9.5 | |||||
| 48 | 96 | 9.9 | |||||
| 50 | 100 | 9.9 |
- *1 : The standard sheath color is gray.
- *2 : The standard length is 100m.
- *3 : A shielded cable uses a drain wire (10/0.12TA).
The printed colors of the products may be slightly different from those of the actual products. The contents of this catalog are applicable as of May 2005.
