Ethernet Cable for field network OMNET® series
Cat.5e Cables for Fixed Wiring/Cat.5e Cables for Movable Wiring
This cable is compatible with Cat.5 standard, and is designed for both fixed and movable wiring.
Features (For fixed Wiring)
- Industrial Ethernet cables that are compliant with the Cat. 5e (1000BASE-T) standard.They are shielded cables for general purpose fixed wiring.The double shield structure provides cables with improved noise resistance. We offer cables suitable for required applications and usability.In addition, our product lineup supports the latest compact Ethernet connectors
(IX series) *1
Configuration Table

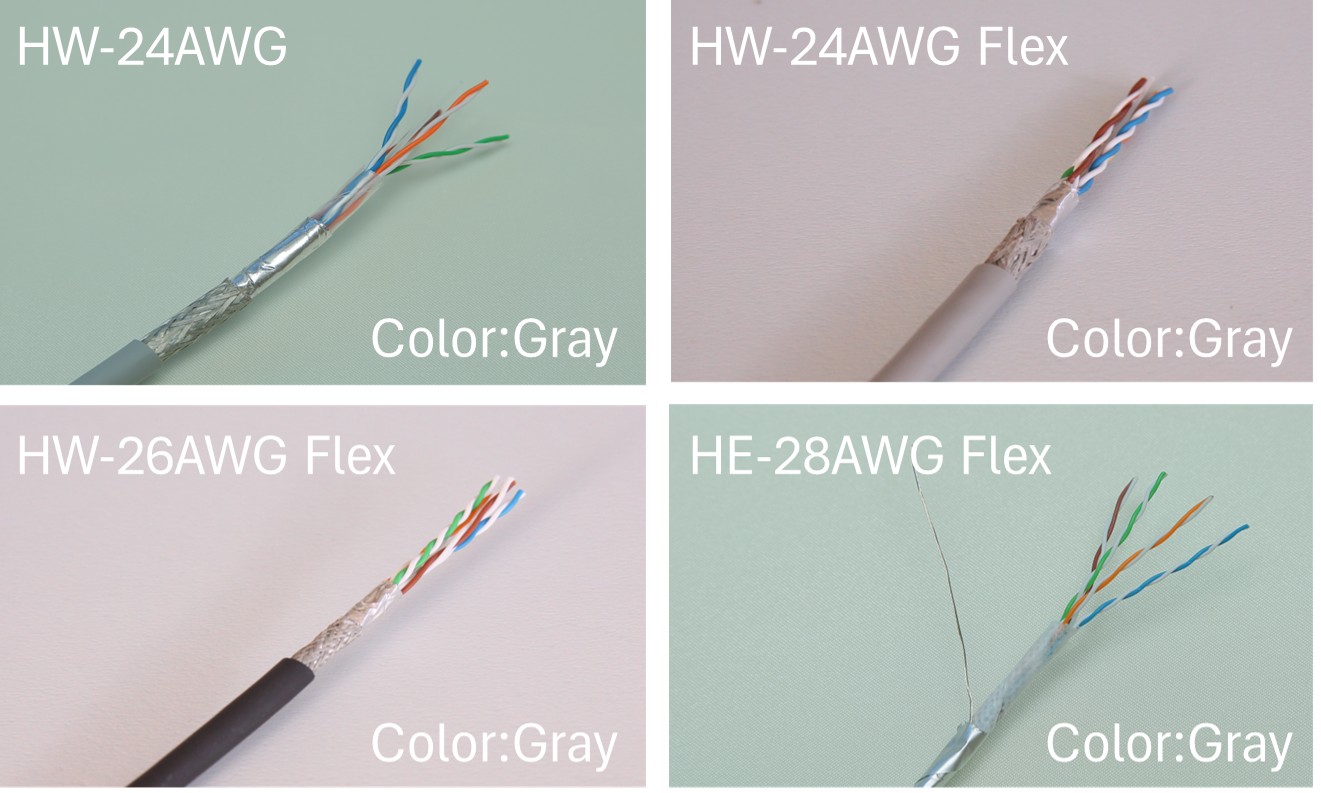

| Product name | OMNET-C5e HW-24AWG | OMNET-C5e HW-24AWG Flex | OMNET-C5e HW-26AWG Flex | OMNET-C5e HE-28AWG Flex |
|---|---|---|---|---|
 *2 *3 |
*2 |
|||
| Conductor (AWG） | 24 |
24 |
26 |
28 |
| Outer diameter of insulator | Standard 1.01mm | Standard 1.10mm | Standard 0.95mm | Standard 0.64mm |
| Shield | Tape + braid |
Tape + braid |
Tape + braid |
Tape |
| Outer diameter | Standard 7.3mm | Standard 7.0mm | Standard 6.3mm | Standard 4.8mm |
| Transmission distance | Max. 100m | Max. 60m | Max. 40m | Max. 30m |
| Length of cable sold | 200m |
200m | 200m | 200m |
| cross-sectional drawing |
 |
 |
 |
 |
| Compatible connectors (see page 71 for details) |
IX, RJ45 | IX, RJ45 | IX, RJ45 | RJ45 |
- *1 : is a registered trademark of HIROSE ELECTRIC CO., LTD.
- *2 : is a registered trademark of the ETG Association.
- *3 : is a registered trademark of the ETG Association.
Features (For movable wiring)
- Industrial Ethernet cables that are compliant with the Cat. 5e (1000BASE-T) standard.They are shielded cables for movable wiring.
The double shield structure provides cables with improved noise resistance.We offer cables suitable for required applications and usability.Also, our lineup of cables are compatible with the latest compact Ethernet connectors (IX series) *3 and M12 connectors.
Configuration Table

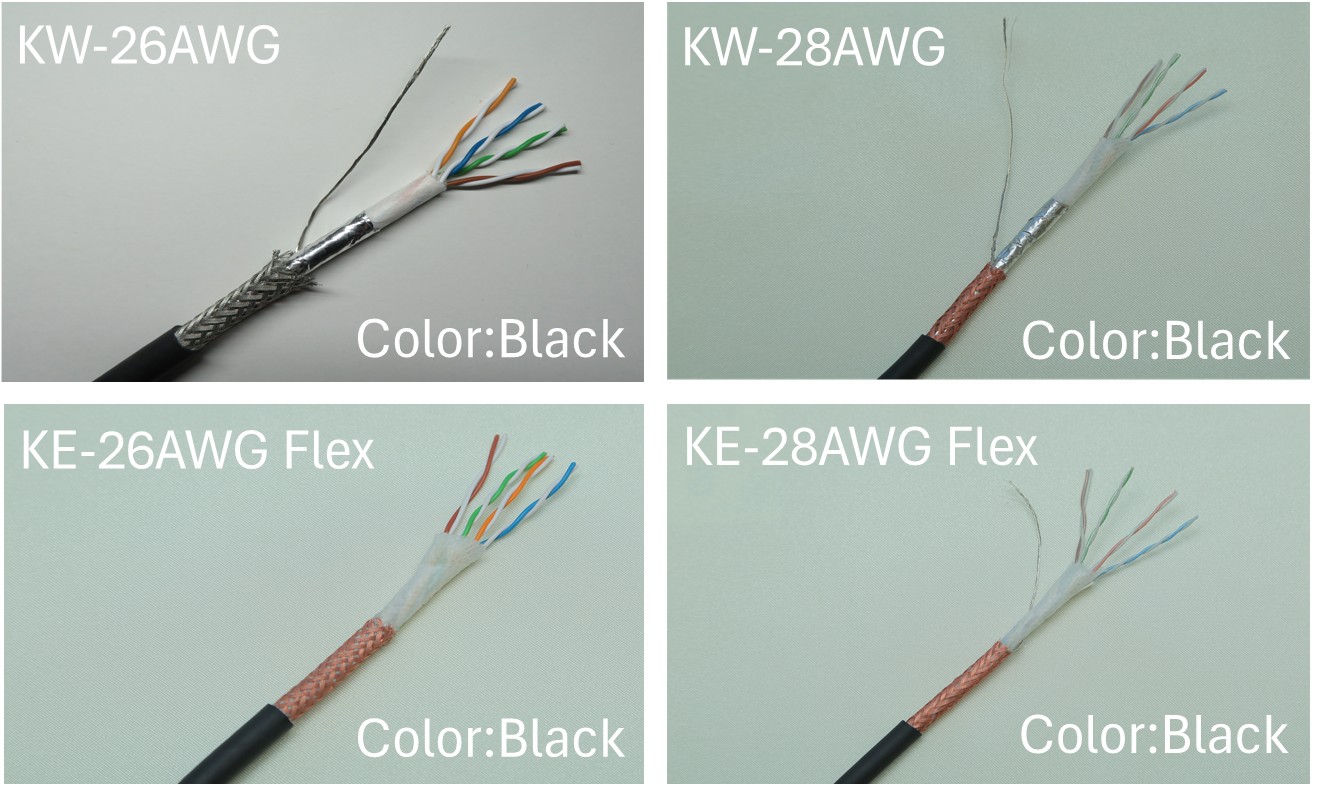

| Product name | OMNET-C5e KW-26AWG | OMNET-C5e KW-28AWG | OMNET-C5e KE-26AWG Flex | OMNET-C5e KE-28AWG Flex |
|---|---|---|---|---|
| *4*5 |
||||
| Conductor (AWG） | 26 |
28 |
26 |
28 |
| Outer diameter of insulator | Standard 0.97mm | Standard 0.65mm | Standard 0.94mm | Standard 0.65mm |
| Shield | Tape + special braid |
Tape + special braid |
Special braid | Special braid |
| Outer diameter | Standard 6.7mm | Standard 5.5mm |
Standard 6.8mm | Standard 5.3mm |
| Transmission distance | Max. 40m | Max. 30m | Max. 40m | Max. 30m |
| Movement durability *2 (sliding/bending) |
Covers over 40million movements (R = 30mm) | Covers over 40million movements (R = 30mm) | Covers over 3million movements (R = 30mm) | Covers over 40million movements (R = 30mm) |
| Length of cable sold | 200m | 200m | 200m | 200m |
| cross-sectional drawing |
 |
 |
 |
 |
| Compatible connectors (see page 71 for details) |
IX, M12, RJ45 | RJ45 | IX, M12, RJ45 | RJ45 |
- *2 : The test conditions and manners are according to the company's own methods. These data are reference values only, and are not guaranteed values.
- *3 : is a registered trademark of HIROSE ELECTRIC CO., LTD.
- *4 : is a registered trademark of the ETG Association.
- *5 : is a registered trademark of the ETG Association.
