MECHATROLINK Harness

A harness for MECHATROLINK-III. It is certified by the MECHATROLINK Members Association.
With connectors attached to both ends, this harness supports high-speed transmission between MECHATROLINK-III devices.

MECHATROLINK *1

Features

Mini I/O connectors and shielded RJ45 modular plugs can be attached.
This harness supports a maximum transmission distance of 75 meters, enabling long-distance transmission in factories and similar sites.
Its high flexibility enables the harness to be used for applications including fixed wiring and patch cords between devices.
The double shield structure has improved noise resistance. Furthermore, the oil-resistant jacket is used to make this harness suitable for applications in factories and similar sites.

Product name

Connector symbols

WMI	Mini I/O connectors on both ends
WRJ	RJ45 modular plugs on both ends

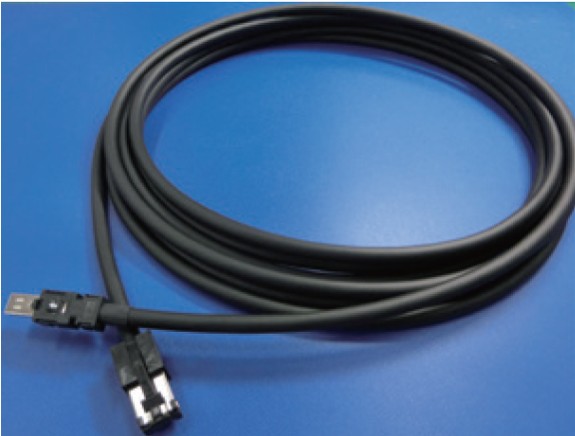

RJMI	RJ45 modular plug on one end, and mini I/O connector on the other end

Consult with us about compatibility with connectors other than the above.

Configuration

Example of configuration diagram: Harness with mini I/O connectors on both ends

Configuration Table

Cable	OMNET-ML3 HW-22AWG Flex
Cable outer diameter	6.0mm (standard)
Jacket color	Black
Harness length	Max. 75m
Connectors	RJ45, mini I/O
Transmission performance	Compliant with the TIA/EIA-568-D CAT. 5e channel standard
Transmission rate	Max. 100mbps
Shield	Double shield
Operating temperature range	-10 to 60℃
Application parts	Fixed parts and patch cords

*1 : is a registered trademark of the MECHATROLINK Association.
