Ethernet Cable for field network OMNET® series
Cat.7A/6A
This cable is compatible with Cat.7A and Cat.6A standards, and is designed for both fixed and movable wiring.

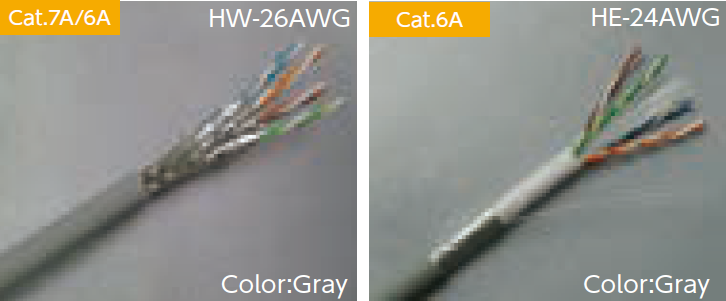

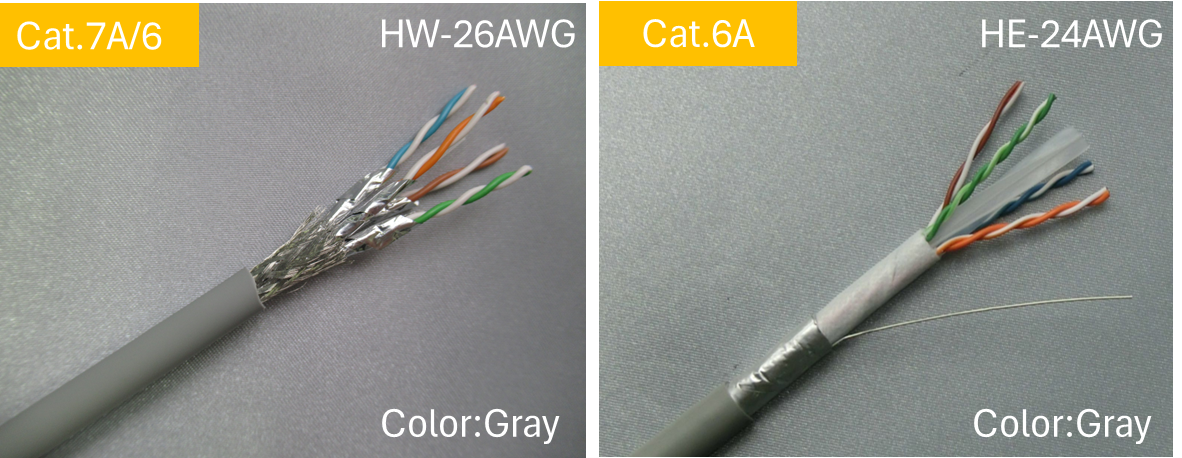

Features (For fixed Wiring)
- The OMNET-C7A cables are compliant with both of the Cat.
7A(transmission band:1000MHz)and Cat. 6A(transmission band:500MHz)standards.The cables are double shielded, which means that each pair shield and the external shield are provided. This drastically reduces not only external noise interference but crosstalk between wire pairs for high-speed transmission.
Configuration Table
| Product name | OMNET-C7A HW-26AWG Flex | OMNET-C6A HE-24AWG |
|---|---|---|
| standards | Cat.7A | Cat.6A |
| Conductor (AWG) | 26 |
24 |
| Outer diameter of insulator | Standard 1.05mm | Standard 1.01mm |
| Shield | Tape + braid |
Tape |
| Outer diameter | Standard 6.5mm | Standard 8.0mm |
| Transmission distance | Max. 40m | Max. 100m |
| Length of cable sold | 120m | 200m |
| Movement durability *1 (sliding/bending) | - | - |
| cross-sectional drawing |
 |
 |
- *1 : The test conditions and manners are according to the company's own methods. These data are reference values only, and are not guaranteed values.

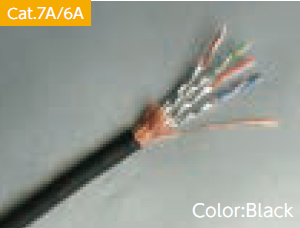

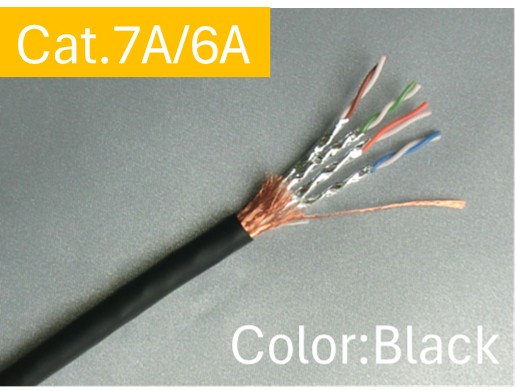

Features (For movable wiring)
- The OMNET-C6A cable is compliant with the Cat. 6A standard. The length marks provided at one meter intervals enable you to confirm the length of the remaining cable without taking it out of the box.
Configuration Table
| Product name | OMNET-C7A KW-28AWG |
|---|---|
| standards | Cat.7A |
| Conductor (AWG) | 28 |
| Outer diameter of insulator | Standard 1.00mm |
| Shield | Tape + special braid |
| Outer diameter | Standard 6.5mm |
| Transmission distance | Max. 30m |
| Length of cable sold | 120m |
| Movement durability *2 (sliding/bending) | Covers over 3million movements (R = 50mm) |
| cross-sectional drawing |
 |
- *2 : The test conditions and manners are according to the company's own methods. These data are reference values only, and are not guaranteed values.
