Ethernet Cable for field network OMNET® series

PROFINET/MECHATROLINK

Field network cable for fixed wiring compatible with the PROFINET Type A standard, and cable for fixed wiring compliant with the MECHATROLINK-Ⅲ standard.

Features

The OMNET-PFN cable is compliant with the PROFINET Type A standard, and used for fixed wiring. The cable is registered with the PROFIBUS Organization. Its jacket color (RAL6018) defined by the PROFINET standard enables it to be more easily identified. The cable supports transmission rates of up to 1 Gbps and transmission bands of up to 100 MHz. An oil-resistant jacket is used.
The OMNET-ML3 cable is for fixed wiring, compliant with the MECHATROLINK-III standard, and certified by the MECHATROLINK Members Association.The cable supports transmission rates of up to 100 Mbps and transmission bands of up to 100 MHz. An oil-resistant jacket is used.

For fixed Wiring

Product name	OMNET-PFN HW-24AWG	OMNET-ML3 HW-22AWG Flex
	*1	*2
Conductor (AWG)	24	22
Outer diameter of insulator	Standard 1.07mm	Standard 1.54mm
Shield	Tape + braid	Tape + braid
Outer diameter	Standard 7.4mm	Standard 6.0mm
Transmission distance	Max. 100m	Max. 75m
Length of cable sold	200m	100m

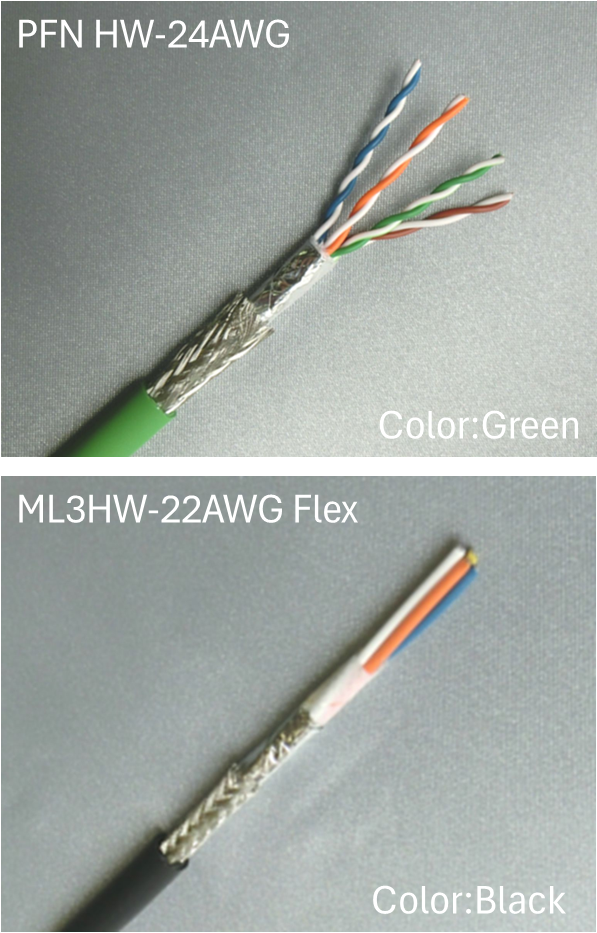

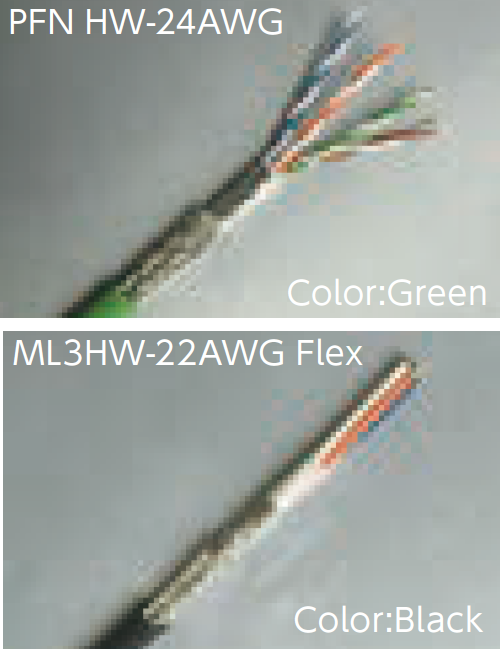

cross-sectional drawing

See page MECHATROLINK for an ML3 cable equipped with connectors.

*1 : is a registered trademark of the PROFIBUS Association.
*2 : is a registered trademark of the MECHATROLINK Association.
