High density (0.635mm pitch) Eco-OKIFLEX (UL2734)
UL STYLE NO.2734 80degrees 30V
This is an environmentally friendly non-halogen insulation type cable called Eco-OKIFLEX.
This high density type cable facilitates miniaturization of equipment.
Features
- Due to the use of our unique technology, this cable has the same flexibility and electrical characteristics as those of conventional cables, despite the use of non-PCV/non-halogen resin for the insulation material.
- This product is environmentally friendly. It also conforms to the RoHS regulations (which limit the use of specific substances contained in electrical and electronic equipment).
- In order to meet the demands for miniaturization of equipment, this cable uses AWG30 (7/0.1mm) tin-plated copper wires, and the pitch of this flat cable (0.635mm) is one half of that of the conventional value of 1.27mm.
- The cable can be easily pressure-welded to a high density IDC connector (1.27 mm pitch), reducing the necessary mounting space and also permitting multiple connections.
- Like the conventional OKIFLEX series cables, the new cable is available as a bridge type or a sudare type.
Applications
Ideal for connecting equipment such as computers, peripheral equipment, communication equipment, and office equipment and also for internal fixed wiring.

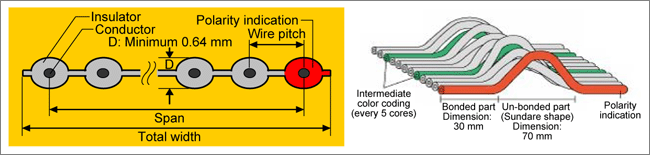

Shape
Characteristics
| Conductor resistance Ω/km (20degrees) | 358 max | Characteristic impedance Ω | Standard 76 |
|---|---|---|---|
| Insulation resistance MΩ-km (20degrees) | 1 min | Propagation delay ns/m | Standard 5.0 |
| Withstand voltage Vrms/min | 1500 | Near-end crosstalk % | Standard 4.0 |
| Capacitance pF/m | Standard 80 | Flame retardant characteristics | VW-1 |
Item name, classification, and color of core wire
| Item name | Classification | Color of core wire |
|---|---|---|
| FLEX-BN ( )-7/0.1 2734P | Bridge type | Red - Gray-Gray - Gray - Green - Gray … 1st core wire =Red, 5nth core wire =Green,Others=Gray |
| FLEX-SN ( )-7/0.1 2734P | Sudare type | Red - Gray - Gray - Gray - Green - Gray … 1st core wire =Red, 5nth core wire =Green,Others=Gray |
Type configuration table
| Number of cores wires | Conductor | Insulator | Span mm | Total Width mm | Wire pitch mm | Sandard length |
|---|---|---|---|---|---|---|
| 20 | AWG30 (7/0.1) |
Flame retardant polyolefin |
12.1 | 12.7 | 0.635 | 1reel 61m (200feet) |
| 24 | 14.6 | 15.2 | ||||
| 30 | 18.4 | 19.1 | ||||
| 40 | 24.8 | 25.4 | ||||
| 50 | 31.1 | 31.8 | ||||
| 60 | 37.5 | 38.1 | ||||
| 80 | 50.2 | 50.8 | ||||
| 100 | 62.9 | 63.5 |
