High density cable type OKIFLEX (UL20276)
UL STYLE NO.20276 80degrees 30V
Features
- This is a cable type OKIFLEX with the O.D. of the insulator reduced (0.62mm) in order to reduce the diameter of the cable and realize high density mounting. A shielded version is also available.
- This product is environmentally friendly. The insulator and sheath material do not contain specific bromide-based fire retardant (PBDE or PBB) or the heavy metals Pb, Cr6+, Cd and Hg. They also conform to the RoHS (restriction of the use of certain hazardous substances in electrical and electronic equipment) regulations.
Applications
Ideal for connecting equipment such as computers, peripheral equipment, communication equipment, and office equipment, to each other.

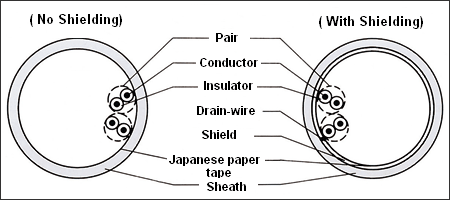

Construction example
Characteristics
| Conductor resistance Ω/km (20degrees) | 362(MAX) | Characteristic impedance Ω | 93(STD) |
|---|---|---|---|
| Insulation resistance -km (20degrees) | 1(MIN) | Propagation delay*1 ns/m | 5.0(STD) |
| Withstand voltage Vrms/min | 350(MINI) | Near-end crosstalk*1 % | 4.8(STD) |
| Capacitance*1 pF/m | 150(STD) | Flame retardant characteristics | VW-1 |
- *1 : The measured core wire is measured in the SG mode (G and the shield are common).
Product name
| 7/0.1 (1)P HRV16-(2)(20276) SB |
- * :Enter the number of pairs according to the type configuration table below in (1),and a symbol indicating whether or not the cable is shielded (V: Unshielded/SV: Shielded/ALSV: Double shielded with aluminum tape + braid) in (2).
Type configuration table
| Number of Pairs | Conductor | Insulator O.D. mm | Sheath O.D. (Shielded) mm | Availability | ||
|---|---|---|---|---|---|---|
| V | SV | ALSV | ||||
| 5(10) | 7/0.127 (AWG30) | Soft PVC | 11.43 | 12.7 |  |
|
| 8(16) | 19.05 | 20.3 | |
|
||
| 10(20) | 24.13 | 25.4 | |
|
||
| 13(26) | 31.75 | 33.0 | |
|
||
| 15(30) | 36.83 | 38.1 | |
|
||
| 17(34) | 41.91 | 43.2 | |
|
||
| 20(40) | 49.53 | 50.8 | |
|
||
| 25(50) | 62.23 | 63.5 | |
|
||
| 30(60) | 74.93 | 76.2 | |
|
||
| 32(64) | 80.01 | 81.3 | |
|
||
