High density pressure welding thin I/O cable (UL20276)
UL STYLE NO.20276 80degrees 30V
Features
- The insulator of this cable has the smallest O.D. (= 0.58mm) of our multi-core cables in order to make the cable thin and permit high density mounting. A shielded version is also available.
- This product is environmentally friendly. The insulator and sheath material do not contain specific bromide-based flame retardant (PBDE or PBB) or the heavy metals Pb, Cr6+, Cd and Hg. They also conform to the RoHS (restriction of the use of certain hazardous substances in electrical and electronic equipment) regulations.
Applications
IdealIdeal for connecting equipment such as computers, peripheral equipment, communication equipment, and office equipment, to each other.

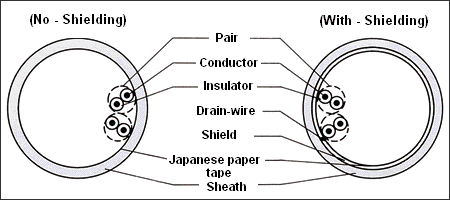

Construction example
Characteristics example (shielded)
| Conductor resistance Ω/km (20degrees) | 222(MAX) | Characteristic impedance Ω | 50(STD) |
|---|---|---|---|
| Insulation resistance -km (20degrees) | 1(MIN) | Propagation delay*1 ns/m | 5.1(STD) |
| Withstand voltage Vrms/min | 350(MINI) | Near-end crosstalk*1 % | 4.5(STD) |
| Capacitance*1 pF/m | 128(STD) | Flame retardant characteristics | VW-1 |
- *1 : The measured core wire is measured in the SG mode (G and the shield are common).
Method of expressing product name
| 7/0.127 (1)P VX10-(2)(20276) SB |
- * :Enter the number of pairs according to the type configuration table below in (1),and a symbol indicating whether or not the cable is shielded (V: Unshielded/SV: Shielded/ALSV: Double shielded with aluminum tape + braided shield) in (2).
Type configuration table
| Number of Pairs | Conductor | Insulator | Insulator O.D. mm | Thickness of Sheath(Shielded) mm |
Sheath O.D. (Shielded) | Availability | |
|---|---|---|---|---|---|---|---|
| V | SV | ||||||
| 5 | 7/0.127 (AWG28) | Soft PVC | 0.58 | 0.9 | 5.2 |  |
|
| 6 | 5.5 | |
|
||||
| 7 | 5.5 | |
|
||||
| 10 | 6.1 | |
|
||||
| 13 | 6.5 | |
|
||||
| 14 | 6.5 | |
|
||||
| 18 | 7.0 | |
|
||||
| 20 | 7.2 | |
|
||||
| 25 | 8.0 | |
|
||||
| 30 | 8.2 | |
|
||||
| 32 | 8.3 | |
|
||||
| 34 | 8.7 | |
|
||||
| 40 | 9.5 | |
|
||||
| 48 | 9.9 | |
|
||||
| 50 | 9.9 | |
|
||||
