All-quartz optical fiber
Metal composite optical cable(for outdoor use)
Overview
This optical-metal composite cable integrates optical fiber cable for high-speed transmission and metal cable to transmit, for example, power and low-speed control signals in a single cable. The cable uses Laminated aluminum polyethylene(LAP) keeping off moisture permeation from the outside and fusing with the cable jacket resin, which keeps the optical cable performance good for outside.
Features
- Devices installed outdoors at roads, airports, etc. where external power supplies are difficult to arrange, devices that require remote operation, etc.
- Communication devices for which you want to completely prevent the effects from external noise on high-speed signals in particular, etc.

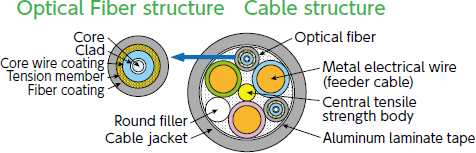

Structure
Configuration Table
| Number of core wires | Optical fiber: 2-core; metal electrical wire: 3-core | |
|---|---|---|
| Optical fiber | Optical fiber type | All-quartz single-mode fiber |
| Modal field diameter | 9.2 μm | |
| Clad diameter | 125 μm | |
| Core wire diameter / materials | 0.9 mm / PE resin | |
| Fiber diameter / materials | 2.0 mm / PE resin | |
| Transmission loss | 0.5 dB / km (λ=1310 nm) | |
| Metal electrical wire | Conductor configuration | 37 / 0.26 (AWG14) |
|---|---|---|
| Conductor outer diameter | 1.8 mm | |
| Insulator outer diameter | 3.4 mm / PE resin | |
| Conductor resistance | 9.8 Ω / km | |
| Insulator resistance | 2500 MΩ or more | |
| Withstand voltage | AC1500 V·1 minute interval |
| Central tensile strength body / materials | φ1.0 mm / steel wire | |
|---|---|---|
| Moisture-proofing | Aluminum laminate tape | |
| Cable-jacket outer diameter / materials | 12.5 mm / PE resin | |
| Tensile strength | ≧440 N | |
| Allowable bend radius | During installation | 250 mm |
| While fixed | 125 mm (Optical fiber 30 mm) | |
| Operation temperature range | −20 to 70°C | |
| Operation humidity range | 85% RH or less | |
| Usage environment | Outdoor | |
- * : The configuration and specifications are an example of a composite cable product using single mode fiber.
We also offer other configurations and specifications.
Consult us separately for details.
Model no.
CG1.7-SM2C3LAP
