HPCF Optical fiber
Flexible optical cable for low temperature environments
Overview
This flexible optical cable uses special materials that prevent the cable from hardening and cracking in operation under low-temperature environments.
HPCF fiber with a larger core diameter than all-quartz has a good coupling efficiency between optical modules and optical fibers and keeps stable performance even such
such environments.
Features
- Wiring within machines, particularly outdoor facilities that require movement and are installed in cold regions (wind turbine generators, etc.)
- Environments and devices that require strong noise-proof properties, restriction of noise emission, etc.
Configuration Table
| Optical fiber type | HPCF |
|---|---|
| Core diameter / materials | 200μm / quartz glass |
| Clad diameter / materials | 230μm / UV resin |
| Core wire diameter / materials | 0.6mm / Nylon resin |
| Fiber diameter / materials | 2.2mm / PVC resin |
| Central tensile strength body diameter / materials |
6.2mm / steel wire with PE coating |
| Cable diameter / materials | 14.0mm / PVC resin |
| Numerical aperture (NA) | 0.41 |
| Tensile strength | ≧ 760N | |
|---|---|---|
| Allowable bend radius | ≧ 145mm | |
| Operation temperature range | －40 - 70°C | |
| Transmission loss | λ=650nm | ≦ 15dB/km |
| λ=850nm | ≦ 7dB/km | |
| Transmission band (λ=850nm/@25°C) |
≧ 10MHz·km | |

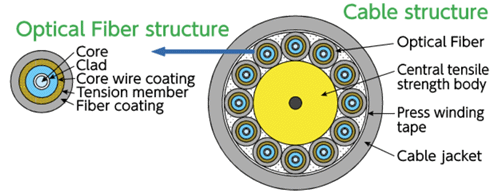

Structure
Model no.
| 12-core | PCK2012HNKVX CR |
|---|
