High bending resistance HPCF fiber optic cable

This is the fixed-wiring optical cable with an embedded steel wire keeping off stress to the optical cable laying in a pipe or cable rack.

Features

  • Environments and devices that require strong noise-proof properties, restriction of noise emission, etc.
  • Used as fixed wiring that requires pulling installation with middle-distance machine-to-machine transmission in factories and facilities, etc.
  • Transmission applications that require blast-proof specifications in plant facilities, etc.

Configuration Table *1

Optical fiber type HPCF
Core diameter / materials 200μm / quartz glass
Clad diameter / materials 230μm / UV resin
Core wire diameter / materials 0.9mm / PVC resin
Central tensile strength body Steel wire with PE coating
Fiber diameter / materials 2.2mm / PVC resin
Cable diameter / Material quality 2-core, 4-core 8.4mm / PVC resin
6-core 9.5mm / PVC resin
Numerical aperture (NA) 0.41
Tensile strength 2-core, 4-core ≧ 735N
6-core ≧ 980N
Allowable bend radius 2-core, 4-core ≧ 90mm
6-core ≧ 100mm
Operation temperature range －20 - 70°C
Transmission loss λ=650nm ≦ 15dB/km
λ=850nm ≦ 7dB/km
Transmission band
(λ=850nm/@25°C)		 ≧ 10MHz·km
  • *1 : Specifications for HPCF fiber. Consult us separately for POF fibers.

Structure

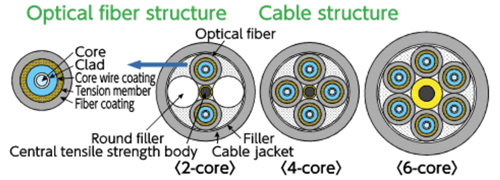

Construction

Model no. *2

2-core PCK202HVX
4-core PCK204HVX
6-core PCK206HVX
  • *2 : Consult us separately for POF cords.
