FA cables for moving parts

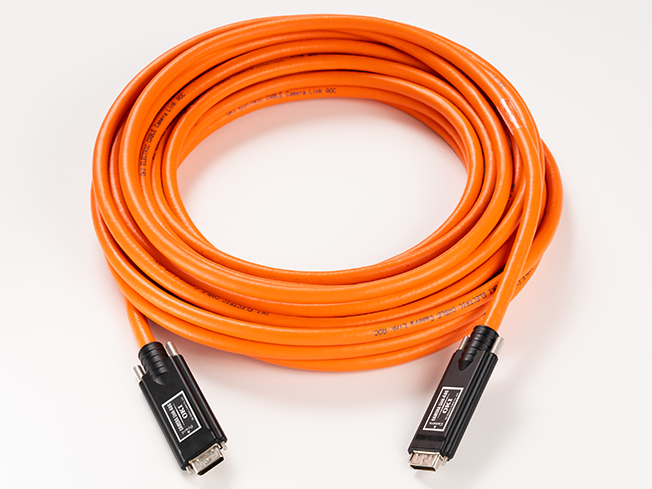

Camera Link Active Optical Cables
Overview
This is the Camera Link AOC by adding the CleanEye(R)unit that enables the transmission up to 20m at 85 MHz, twice the industry standard. It supports widely from the full configuration to the medium/base configuration and provides PoCL type and non PoCL type for each. The repeater unit is placed on the frame grabber side, not in the middle of the wiring. Even at 20 m/85 MHz transmission, it forms a very Clear Eye pattern and provides the high quality transmission.
Features
- Maximum transmission distance of 40 m
Achieves a transmission distance of up to 40 m at full speed (Clock: 85 MHz). - Excellent noise resistance to withstand harsh industrial environments
Passed the EFT/B test level 4 (Peak voltage: 2 kV or greater). - Durability of 100 million times in a sliding/bending fatigue test (R=70 mm)
- No external power supply required

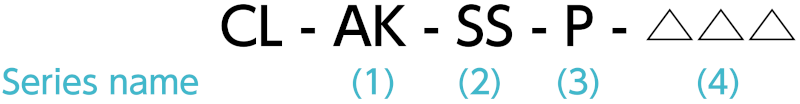

Name
(1) AK : Cable type
(2) SS : Connector combination : SDR on both ends(26pin)
(3) PoCL :P*1
(4) △△△ : Cable length Example 0.5 m: 005 1 m: 010 10 m: 100
- *1: No non-PoCL cameras or non-PoCL frame grabbers are supported.
Specifications
| Configuration | Base/Medium | |
|---|---|---|
| Jacket | Material | Oil resistant PVC |
| Color | Orange | |
| Outer diameter | Standard 8.2 mm | |
| Connector | Type | SDR (26-pin) *2 |
| Color | Black | |
| Power supply | PoCL only | |
| Power consumption | 1.8 W | |
- *2: Please use a conversion cable (sold separately) if you wish to use the MDR connector.
Performance
| Transmission distance | Up to 40 m (20 to 85 MHz) |
|---|---|
| Noise resistance | 2 kV (EFT/B test level 4) *3 |
| Movability (Sliding/bending) | More than 100 million times *4 (R=70 mm) |
- *3: EFT/B test
Electrical fast transient/burst immunity test JIS C61000-4.4 compliant. - *4: These are reference values based on in-house evaluation, not guaranteed values.
Operating environment
| Suitable areas | Fixed or moving part |
|---|---|
| Operation temperature range | -5 to 50 deg. C |
| Minimum bending radius*5 | 60 mm or greater |
- *5: The minimum bending radius is the recommended distance to ensure continuous use.

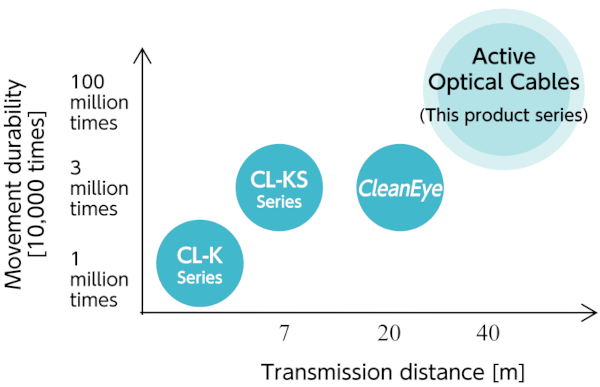

Positioning of this product series

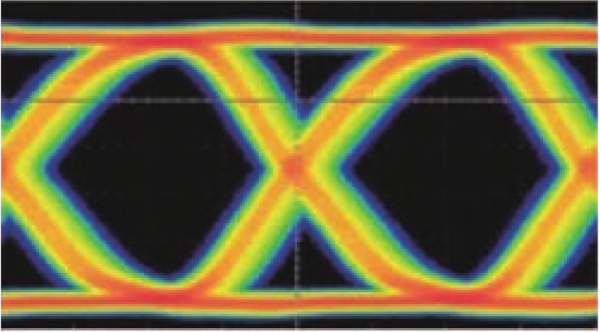

Transmission performance (Eye pattern)
Clock: 85 MHz, Transmission distance: 40 m,
Optical output waveform: 2.38 Gbps

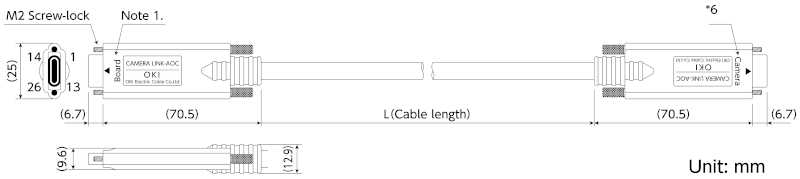

Profile
- *6: This product must be connected in the correct orientation. Please check the labels (Board/Camera) on the connector before connecting.
Accessory

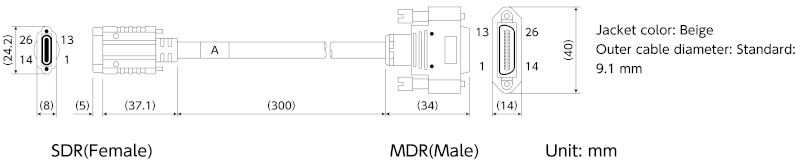

- MDR-SDR conversion cable Product name: CL-H-MS(SF)-030
- The conversion cable is for connecting between Camera Link AOC and a camera / a frame grabber with an MDR connector.
