FA cables for moving parts
CL-TK series(UL758 Style 20276)
Overview
This cable is designed for moving parts with a capacity of more than 20 million sliding bending cycles. Available in medium and base configurations.
Features
- This cable for moving parts is suitable for more than 20 million sliding/bending cycles. It can be used in medium and base configurations.
Name
PoCL : CL -TK - (2) -P - (3) Non-PoCL : CL -TK - (2) - (3)
(2) : Connector combination symbol(See page 54・55) (3) : Cable length symbol(See page 55)*1
- *1: In the case of PoCL, the cable length must be 10 m or less due to power source restrictions.
Specifications
| Type | PoCL type | Non-PoCL type | |
|---|---|---|---|
| Cable | UL | UL 758 Style 20276 | |
| Rated temp./volt | 80˚C / 30 V | ||
| Jacket material | Oil-proof PVC | ||
| Color | BLack | ||
| Outer diameter | Standard 7.8 mm | ||
| Flame retardant | VW-1 | ||
| Complete product | PoCL | Supported | Not Supported |
| Connector type | SDR (26-pin) | ||
| Connector color | See Lineup table (page 55) | ||
- *note: This product has a directional connection. Connect the connector found on the side with the product name label to the camera.
Performance
| Transmission distance (guideline) | Max. 5 m (at 85 MHz) |
|---|---|
| Skew [ps/m] | 25 or less |
| Movement performance | Sliding bending: 20 million times or more Bend radius R = 50 mm Speed: 70 times per minute Sliding distance: 350 mm *2 |
- *2: We use proprietary test conditions and methods. These data are for reference only and are not guaranteed values.
Usage environment
| Application location | Fixed or moving part |
|---|---|
| Operation temperature range | -20 to 75˚C |
| Minimum bend radius(Recommended value)*3 | Fixed: 35 mm or more Mobile: 50 mm or more |
- *3: The minimum bending radius is the recommended distance to ensure continuous use.
Camera Link and cable configurations
The Camera Link cable can be used in three different ways (configurations), depending on the cable combination.
OKI Electric Cableʼs Camera Link cable supports three types of configuration, according to the combinations below.

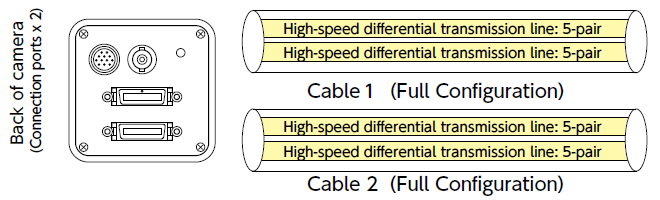

Full Configuration
Grabber board
| Transmission speed | 680Mbytes/s 5.44Gbps |
|
|---|---|---|
| Structure | Full + Full (Using 2 cables) |
|
| Supported cables | Full | CL-H/CL-KH/CL-STH |
| Cable direction | No | |

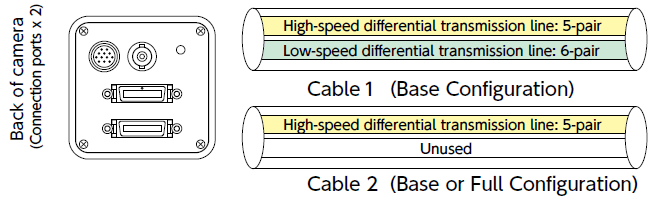

Medium Configuration
Grabber board
| Transmission speed | 510Mbytes/s 4.08Gbps |
|
|---|---|---|
| Structure | Base + (Base or Full) (Using 2 cables) |
|
| Supported cables | Base | CL-S/CL-K/CL-KS/CL-TK |
| Full | CL-H/CL-KH/CL-STH | |
| Cable direction | Base：Yes Full：No | |

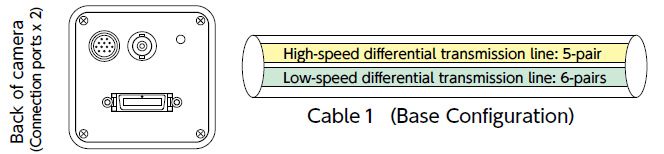

Base Configuration
Grabber board
| Transmission speed | 255Mbytes/s 2.04Gbps |
|
|---|---|---|
| Structure | Base (Using 1 cables) |
|
| Supported cables | Full | CL-S/CL-K/CL-KS/CL-TK |
| Cable direction | Yes | |
