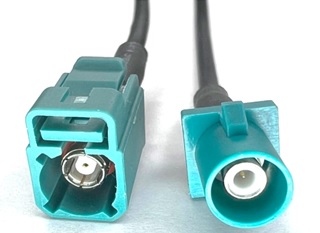

- GVIF/GMSL compliant Machine Vision Cable with FAKRA Connectors
FA cables for moving parts
GVIF/GMSL compliant
Machine Vision Cable with FAKRA Connectors
Overview
FAKRA is one of German standards and the connector specification used as a standard interface for telematics applications in automobiles.It supports high-speed in-vehicle LVDS standards such as GVIF and GMSL.
Features
- FAKRA connectors as the standard interface for high-frequency telematics applications in automobiles,and achieves IPX7 waterproof performance.
- Cables for fixed wiring, as well as for sliding and movable wiring. Up to 4 cables can beconnected and max 15 meters are supported. This allows you to separate wiring for fixed andmovable sections, which improves maintainability.
Product name
FKR(CX) - ① - ② - ③ - ④
- ① Cable Type Code
- Fixed Wiring: H Movable Wiring: K
- ② Connector Combination
- Code Both Ends Plug: PZPZ Jack / Plug: JZPZ
- ③ Waterproof
- With waterproof: WP Without waterproof: Not indicated
- ④ Cable Length
- Example codes 3m: 030 15m: 150 Specifications
Specifications
| Fixed wiring | Movable wiring | |
|---|---|---|
| Cable outer diameter | 3mm | |
| Compatible connector | FAKRA(Jack type, Plug type) | |
| Transmission distance | Up to 15m | Up to 5m |
| Movement performance | - | Over 10 million sliding bending cycles (R=37mm) |
| Operating temperature tange | -10 to 60°C | |
- * The test conditions and methods are unique to our company. These data are reference values and are not guaranteed values.
Configuration diagram

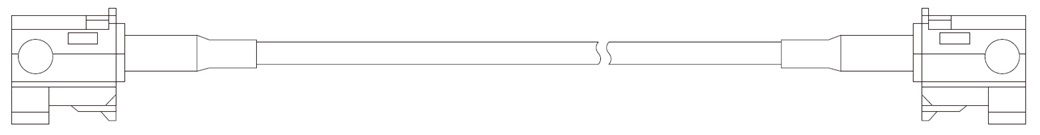

Straight Jack -to- Straight Jack type (for camera and grabber board connection)

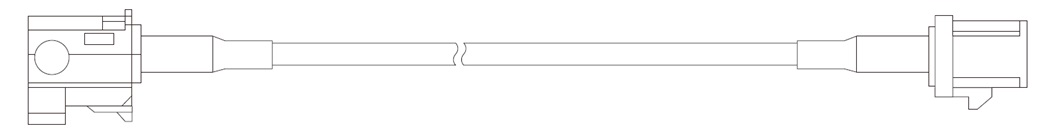

Straight Jack -to- Straight Plug type (for relay/extension purposes)
