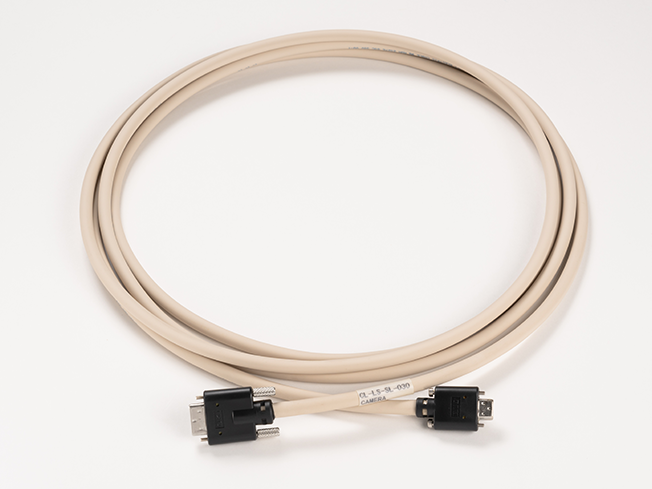

CL-lS series(UL 758 Style 20276)
Overview
This is the cable compatible with PoCL Lite standard. The compact 14 pin SDR connector is used and suitable for connection with ultra compact cameras (Cubic 22 mm).
Features
- Complies with PoCL-Lite standards. Has a small 14-pin SDR connector and is optimal for connections with ultra-small cameras (Cubic 22 mm). About 15% thinner than a standard analog camera cable, so cable wiring is also good.
Name
CL ‒LS - (2) -P - (3)
(2) : Connector combination symbol(See page 54・55) (3) : Cable length symbol(See page 55)*1
- *1: In the case of PoCL, the cable length must be 10 m or less due to power source restrictions.
Specifications
| Type | For both PoCL/non-PoCL use | |
|---|---|---|
| Cable | UL | UL 758 Style 20276 |
| Rated temp./volt | 80˚C / 30 V | |
| Jacket material | PVC | |
| Color | BLack | |
| Outer diameter | Standard 6.1 mm | |
| Flame retardant | VW-1 | |
| Complete product | PoCL | Supported |
| Connector type | SDR (26 pin or 14 pin) | |
| Connector color | See Lineup table (page 55) |
Performance
| Transmission distance(guideline) | 5m (at 85 MHz) |
|---|---|
| Skew [ps/m] | 50 or less |
Usage environment
| Application location | Fixed part |
|---|---|
| Operation temperature range | -20 to 75˚C |
| Minimum bend radius(Recommended value)*2 | 25 mm or more |
- *2: The minimum bend radius is the recommended value for stable use.
