FA cables for moving parts

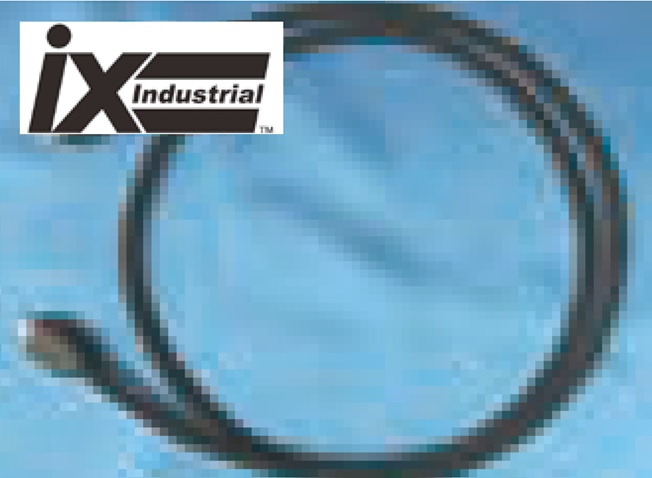

C5e Harness
*2
*3
Overview
The C5e harness is compatible with various types of industrial field networks,*1 and thus supports a wide variety of industrial Ethernet connectors.
Features
- Cables of the OMNET-C5e series (for fixed and movable wiring) are supported.
- The four types of connectors listed in the combination chart below are supported.
- Modular plugs equipped with screw locks provide higher connection reliability, and are most suitable for industrial applications.
- Compared with modular plugs, IX connectors are smaller and more suitable for space-saving and high-density mounting applications.

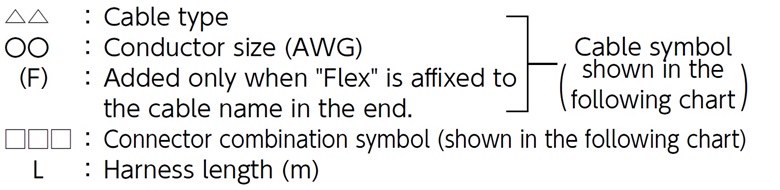

Product name
C5e - △△〇〇(F) - □□□ - L
Example: Cable: OMNET-C5e HW-24AWG, Connectors: RJ45, IX, Harness length: 10 m
Product name：C5e-HW24-RJIX-10
- Only for the following combinations,the product names are as shown at below : RJ on both ends : C5E(S-HFR)(K)-L
Cable: OMNET-C5e KE-26AWG Flex RJ on one end and RS on the other end : C5E(S-HFR)(K)-HSL-L
Connectors: RJ or RS RS on both ends : C5E(S-HFR)(K)-WHSL-L
Combinations of cables and connectors
| Application | Cable | Connector symbols | Max. harneslength (m)s |
|||||
|---|---|---|---|---|---|---|---|---|
| Product name | Symbol | RJ | RS | RSD | IX | M12 | ||
| Fixed | OMNET-C5e HW-24AWG | HW24 | ● | － | － | ● | － | 100 |
| OMNET-C5e HW-24AWG Flex | HW24(F) | ● | － | － | ● | － | 60 | |
| OMNET-C5e HW-26AWG Flex | HW26(F) | ● | － | － | ● | － | 40 | |
| OMNET-C5e HE-28AWG Flex | HE28(F) | ● | － | － | － | － | 30 | |
| Movable | OMNET-C5e KW-26AWG | KW26 | ● | ● | ● | ● | ● | 40 |
| OMNET-C5e KW-28AWG | KW28 | ● | － | － | － | － | 30 | |
| OMNET-C5e KE-26AWG Flex | KE26(F) | ● | ● | ● | ● | ● | 40 | |
| OMNET-C5e KE-28AWG Flex | KE28(F) | ● | － | － | － | － | 30 | |
- *1 : Please refer to pages 6 and 7 for EtherCAT and CC-Link IE compatible cables
- *2 : is a registered trademark of the ETG Association.
- *3 : is a registered trademark of the ETG Associatio.
Configuration Table
| Transmission performance | Compliant with the TIA/EIA-568-D CAT. 5e channel standard |
|---|---|
| Transmission frequency | Max. 100MHz |
| Transmission rate | Max. 1Gbps |
| Operating temperature range | -10 to 60°C |
Connector symbols
| RJ | RJ45 modular plug |
|---|---|
| RS | RJ45 plug with screw locks |
| RSD | RJ45 angle plug with screw locks (drawn out from the bottom) |
| IX | IX connector |
| M12 | M12 M12 connector |
Consult with us about compatibility with connectors other than the above.
