USB3 Vision Cable

The USB3 Vision standard is an interface standard established by AIA, the U.S. machine vision industry association, for machine vision systems based on the USB 3.0 standard, and it supports high-speed transmission up to 5 Gbps.
We offer a lineup to meet diverse needs, ranging from types for fixed installation to highly durable types for moving parts, as well as optical transmission types suitable for long-distance transmission.

* Click the button in the image to open the details page.

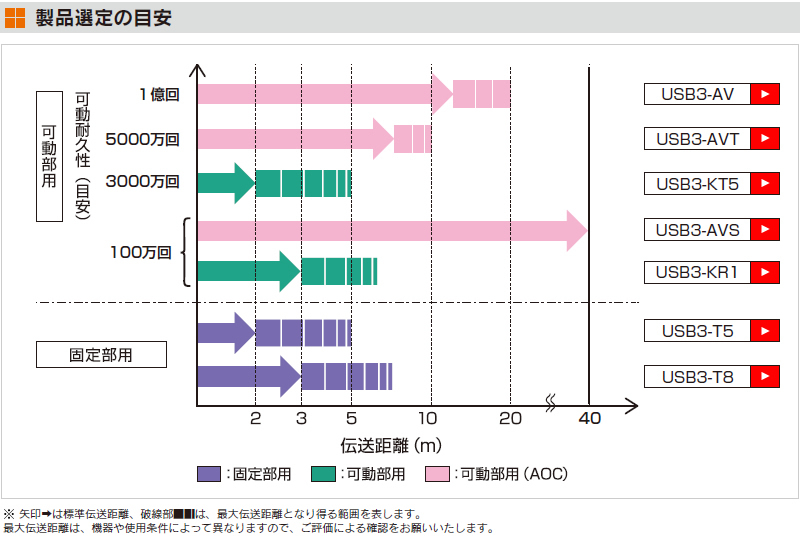

The arrow ➡ indicates the standard transmission distance, and the broken line ■■■ indicates the possible extent of the maximum transmission distance.
The maximum transmission distances vary by device and operating conditions, so please check them through assessment.

For fixed wiring

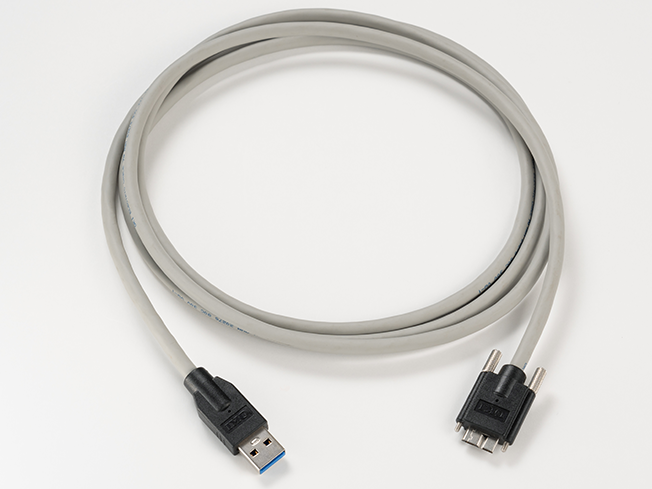

USB3-T5 series

This is the thin and flexible cable with easy handling.

For more details

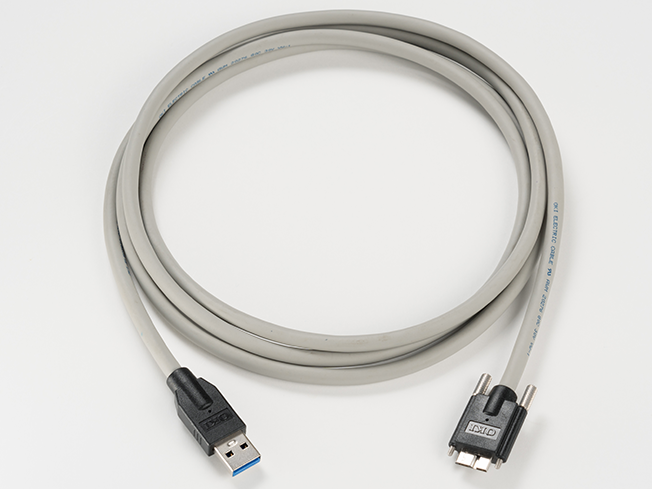

USB3-T8 series

This is the standard cable for fixed wiring use.

For more details

For movable wiring

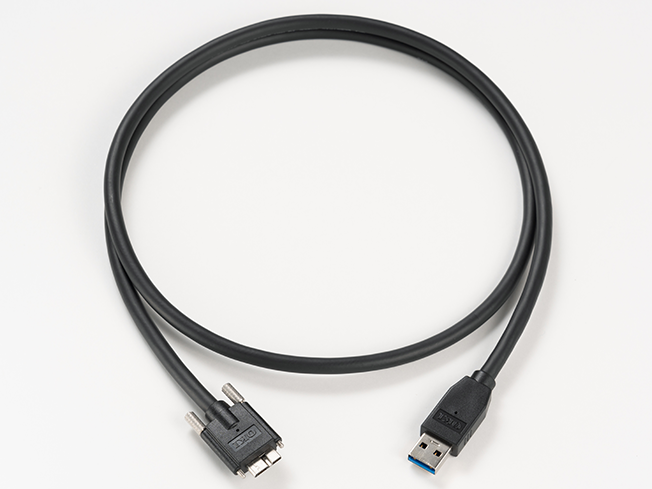

USB3-KT5 series

This is the movable cable that combines thinness with excellent sliding durability.

For more details

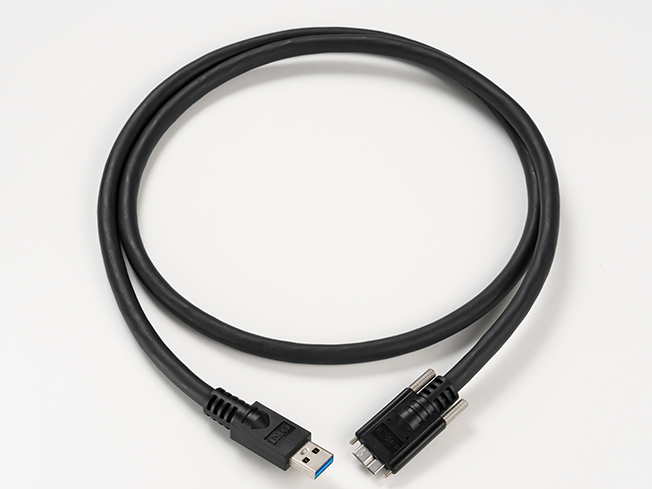

USB3-KR1 series

With excellent transmission performance, it is suitable for a longer transmission distance.

For more details

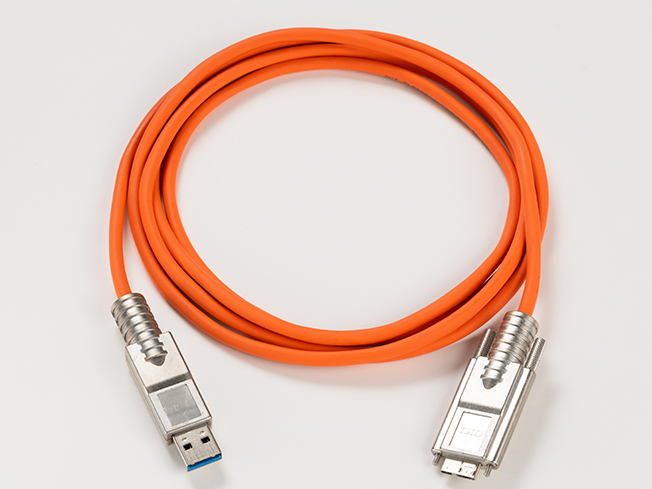

USB3-AVS series

Maximum Transmission distance up to 40m with noise resistance for harsh industrial environments, passing EFT/B test level 4 with the outer diameter of only 4.8mm.

For more details

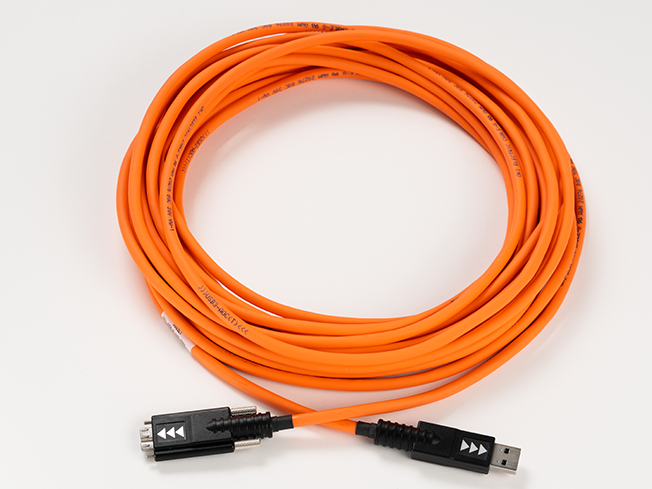

USB3-AVT series

Despite its thin outer diameter of 5.8mm, it supports the transmission distance up to 10 m. The optical transmission provides the excellent noise resistance.

For more details

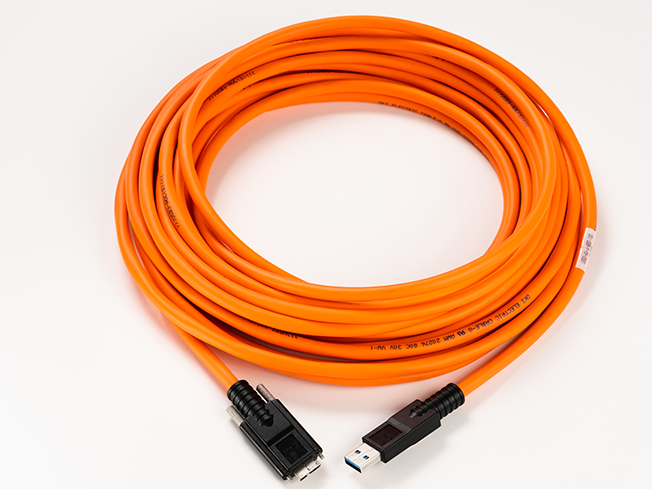

USB3-AV series

It supports the maximum transmission distance up to 20m. Sliding durability is over 100 million cycles(R=70 mm). The optical transmission provides the excellent noise resistance.

For more details
