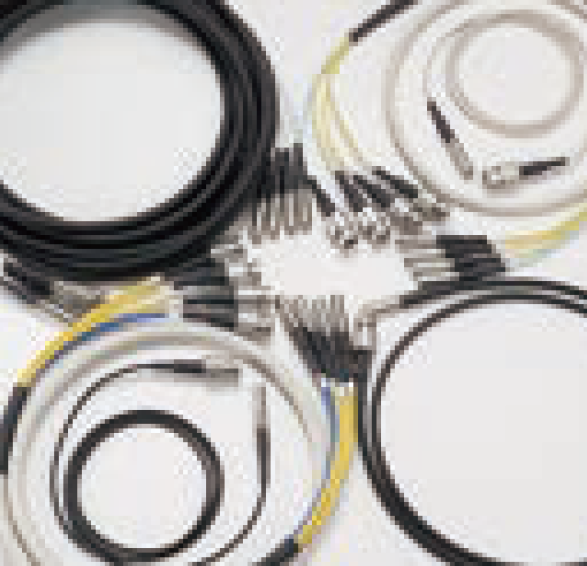

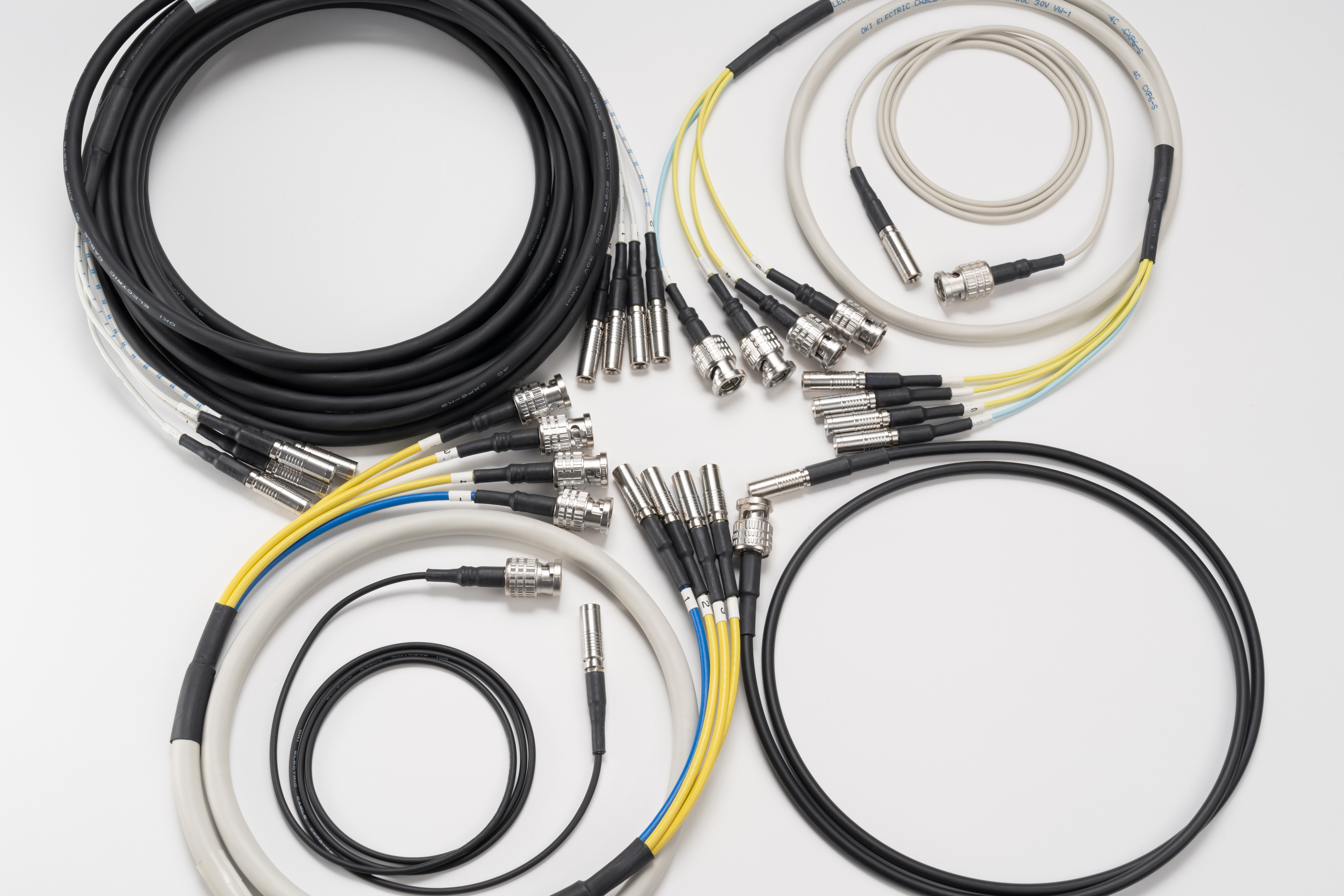

CoaXPress Ver1.0 Cables CXP6 Series
Overview
It supports the transmission speed of 6.25 Gbps per lane and the maximum high speed transmission up to 25 Gbps with 4 lanes. There are 8 types are in total : single and quad core for each of fixed wiring use(thin/standard)and movable wiring use(thin/standard).
Features
- Supports a transmission speed of 6.25 Gbps/lane.
Supports high-speed transmission of up to 25 Gbps with a 4-lane connection. - The lineup includes four types: standard and small-diameter options, which can be selected according to the transmission distance. These options cater to both fixed and movable wiring, ensuring suitability for various applications.
- The connectors are compatible with BNC and DIN types.
- Movement durability: 3 million sliding cycles or more (see performance table)
Name
CXP6 - (1) - (2) - (3) - (4)
- (1): Number of cores
- 1- core: 1C 4- core: 4C
- (2): Cable type symbol
- Fixed small-diameter: S / Fixed standard: H / Movable small-diameter: KS / Movable standard: KH
- (3): Connector combination symbol
- BNC connectors on both ends: BSBS / BNC/DIN connectors: BSDS / DIN connectors on both ends: DSDS
- (4): Cable length
- Symbol examples: 0.5 m: 005 / 1 m: 010 / 10 m: 100
Specifications
| Cable | Number of cores | 1 - core | 4 - core | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Cable type *1 | Fixed wiring | Movable wiring | Fixed wiring | Movable wiring | |||||
| Small-diameter(S) | Standard(H) | Small-diameter(KS) | Standard(KH) | Small-diameter(S) | Standard(H) | Small-diameter(KS) | Standard(KH) | ||
| UL | UL 758 Style 10043 | UL 758 Style 20276 | |||||||
| Rated temp./volt | 80℃ / 30V | ||||||||
| Jacket material | Heat-resistant PVC | ||||||||
| Color | Beige | Black | Beige | Black | |||||
| Outer diameter (standard) | 2.6mm | 3.9mm | 2.6mm | 4.6mm | 6.5mm | 9.2mm | 6.5mm | 11.4mm | |
| Complete product | Connector type | BNC or DIN | |||||||
- *1 : ( ) indicates cable type
Performance
| Number of cores | 1 - core | 4 - core | ||||||
|---|---|---|---|---|---|---|---|---|
| Cable type | Fixed wiring | Movable wiring | Fixed wiring | Movable wiring | ||||
| Small-diameter(S) | Standard(H) | Small-diameter(KS) | Standard(KH) | Small-diameter(S) | Standard(H) | Small-diameter(KS) | Standard(KH) | |
| Transmission class | CXP-6 | |||||||
| Maximum transmission speed | 6.25Gbps | Max.25Gbps | ||||||
| Maximum transmission distance | 5m | 15m | 5m | 15m | 5m | 15m | 5m | 15m |
| Movement performance *2 | - | Sliding bending: 10 million times or more (Bend radius: R=50 mm) |
- | Sliding bending: 10 million times or more (Bend radius: R=KS 50 mm KH 100 mm) |
||||
- *2 : Under Oki test conditions and methods. These values are for reference only and are not guaranteed values.
Usage environment
| Number of cores | 1 - core | 4 - core | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cable type | Fixed wiring | Movable wiring | Fixed wiring | Movable wiring | ||||||||||||||||||
| Small-diameter(S) | Standard(H) | Small-diameter(KS) | Standard(KH) | Small-diameter(S) | Standard(H) | Small-diameter(KS) | Standard(KH) | |||||||||||||||
| Operation temperature range | -10 to 60℃ | |||||||||||||||||||||
| Application location | Fixed part | Fixed or moving part | Fixed part | Fixed or moving part | ||||||||||||||||||
| Minimum bend radius (Recommended value) *3 |
15mm | 20mm | 15mm | 20mm | 30mm | 40mm | 30mm | 50mm | ||||||||||||||
- *3 : The minimum bending radius is the recommended distance to ensure continuous use.
Overview diagram

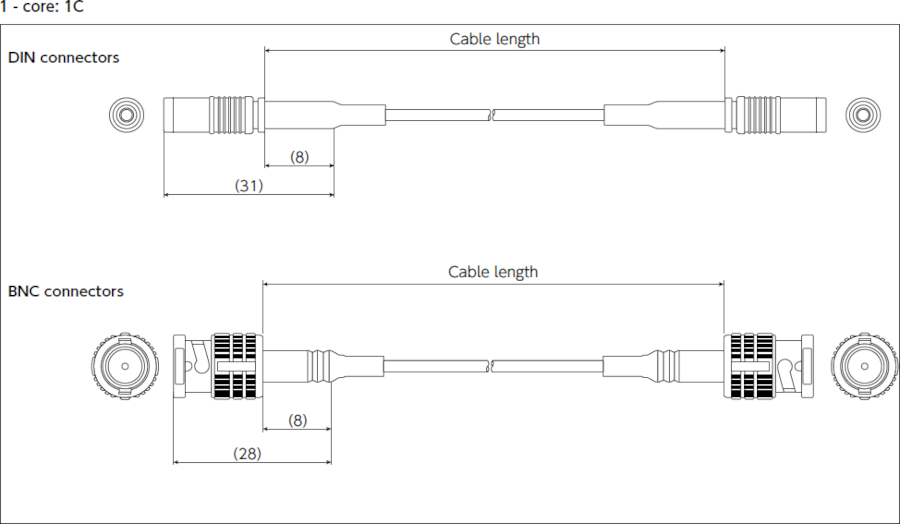

1 - core: 1C

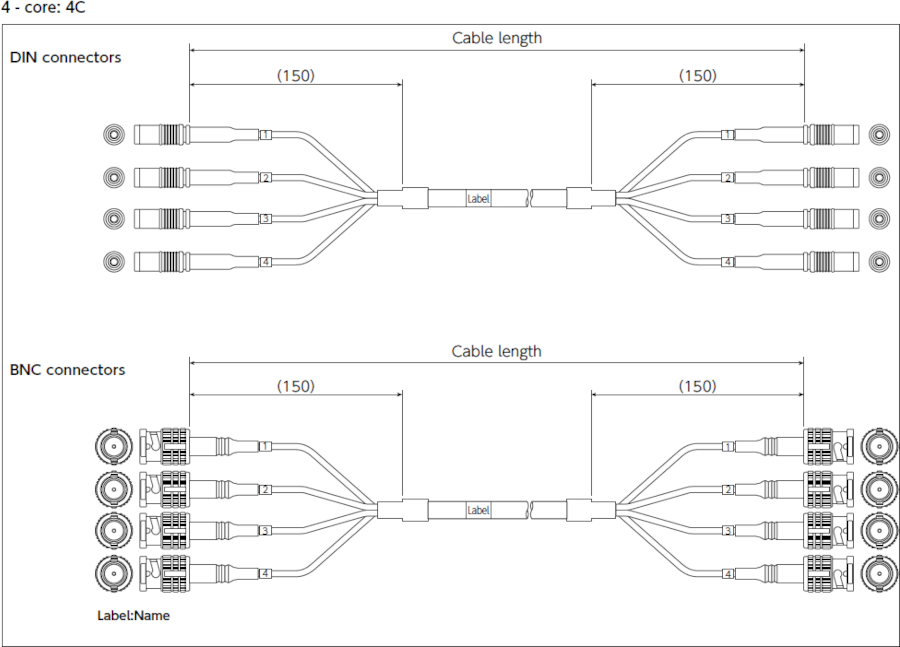

4 - core: 4C
- * :
is a registered trademark of the Japan Industrial Imaging Association.
