Clean Eye Camera Link cable(UL 758 Style 20276)

Overview

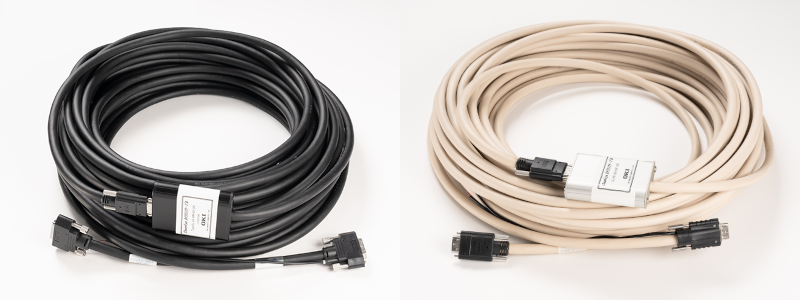

This is the Clean Eye Camera Link Cable with high speed circuit board built-into connector that converts electrical signals to optical signals. It provides the maximum transmission-distance of 40m at the full speed of 85 MHz clock.

Features

A Clean Eye unit is added to a dedicated cable to enable transmission up to a maximum of
20m at 85 MHz, which is double the industry standard.
Full configuration items and base/medium configuration items are available in PoCL and non-
PoCL types.
The repeater unit is not placed in the middle as with conventional cables but is instead
installed on the frame grabber side.
Even with 20 m/85 MHz transmission, an extremely clean eye pattern is formed, enabling highquality
transmission.

Name

(2) : Connector combination symbol(See page 54・55)
(3) : Cable length symbol(See page 55)*2

*1: In the case of PoCL,no indication.
*2: In the case of PoCL, the cable length must be 10 m or less due to power source restrictions.

⚠ Be aware that full configuration items do not support moving applications.

Connector combination No

		Frame grabber side
		MDR Straight	MDR Right angle Up	MDR Right angle Down	SDR 26-pin Straight *3	SDR 26-pin Right angle Up	SDR 26-pin Right angle Down
Camera side	MDR Straight	MM	MM2(MU)	MM2(MD)	SM	SM(SU)	SM(SD)
	MDR Right angle Up	MM(MU)	MM(MU/MU)	MM2(MD/MU)	SM(MU)	SM(SU/MU)	SM(SD/MU)
	MDR Right angle Down	MM(MD)	MM(MU/MD)	MM(MD/MD)	SM(MD)	SM(SU/MD)	SM(SD/MD)
	SDR 26-pin Straight	MS	MS(MU)	MS(MD)	SS	SS2(SU)	SS2(SD)
	SDR 26-pin Right angle Up	MS(SU)	MS(MU/SU)	MS(MD/SU)	SS(SU)	SS(SU/SU)	SS2(SD/SU)
	SDR 26-pin Right angle Down	MS(SD)	MS(MU/SD)	MS(MD/SD)	SS(SD)	SS(SU/SD)	SS(SD/SD)

*3: Full Compatible Product(CL HC)Is Not Compatible with MDR Right Angle Connector.

Specifications

Type		Full support item		Base/medium item
Type		PoCL type	Non-PoCL type	PoCL type	Non-PoCL type
Cable	UL	UL 758 Style 20276		UL 758 Style 20276
	Rated temp./volt	80˚C / 30 V		80˚C / 30 V
	Jacket material	PVC		PVC
	Color	Beige		Black
	Outer diameter mm	Standard 8.5		Standard 9.0
	Flame retardant	VW-1		VW-1
Clean Eye repeater unit *4	Weight g	About 270		About 250
	Consumption W	1.0 (typ.)		0.5 (typ.)
	Color	Silver		Black
	Outer diameter mm	57 (W) × 18 (H) × 68 (D) *Excluding protrusions		57 (W) × 18 (H) × 71 (D) *Excluding protrusions
Complete product	PoCL	Supported	Not Supported	Supported	Not Supported
	Connector type	MDR or SDR (26-pin)		MDR or SDR (26-pin)
	Connector color	Black		Black

*4: We do not sell the Clean Eye unit individually. Furthermore, it cannot be used in combination with other Camera Link cables.

Performance

Type	Full support item	Base/medium item
Transmission distance	Max. 20 m (at 85 MHz)	Max. 20 m (at 85 MHz)
Movement performance	ー	Sliding bending: 3 million times or more *5 Bend radius: R=100 mm Sliding speed: 70 times per minute Sliding distance: 200 mm

*5: Under Oki test conditions and methods. The values here are for reference only and are not guaranteed values.

Usage environment

Type	Full support item	Base/medium item
Application location	Fixed part	Fixed or moving part
Operation temperature range	-5 to 45˚C	-5 to 45˚C
Humidity	20% to 80% (no condensation)	20% to 80% (no condensation)
Minimum bend radius (Recommended value) *6	40 mm or more	Fixed: 40 mm or more Mobile: 100 mm or more

*6: The minimum bend radius is the recommended value for stable use.

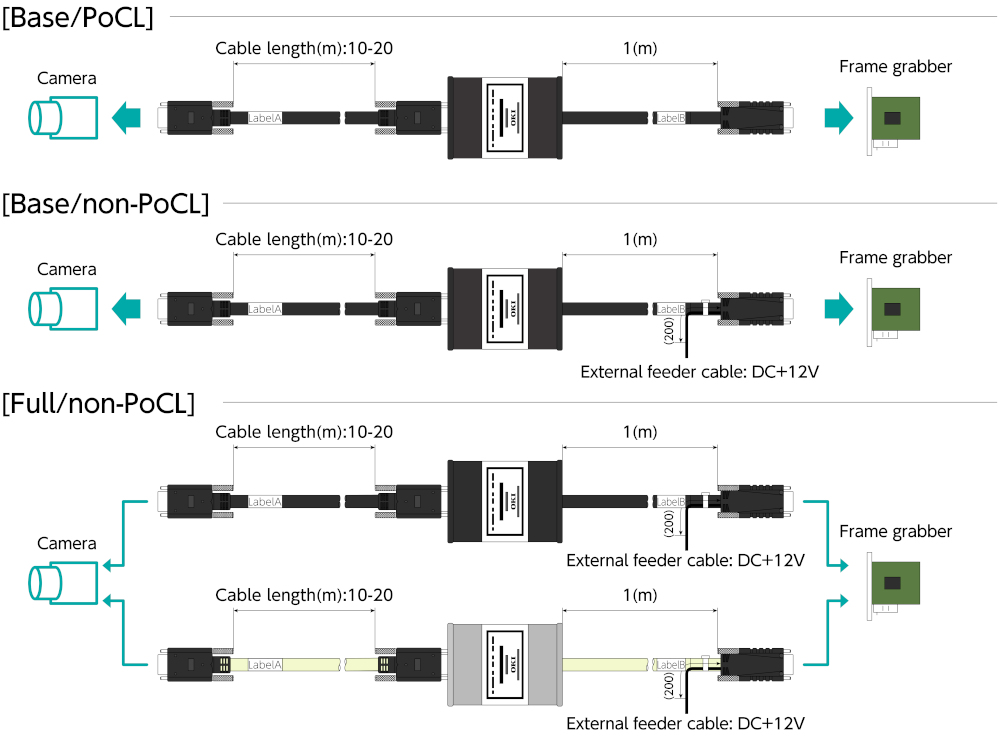

Overview diagram / connection example

*(1)In a medium configuration, two basic configuration items form two parallel connections. In a full configuration, a base configuration item and a full configuration item form two parallel connections.
*(2)In the case of PoCL, there is no external feeder cable. LabelA：Name and Serial number LabelB：Serial number
