HPCF Optical fiber

Highly bendable optical cable

Overview

High bending resistance HPCF fiber optic cable

This cable with the special nylon resin has highly bending durability and tensile strength.
HPCF fiber with a larger core diameter than all-quartz has a good coupling efficiency between optical modules and optical fibers with resistance to mechanical stress, which is suitable for applications such as FA equipment and robotic devices.

Features

Uses that require bending and strength, such as with FA equipment and robot instruments.
Environments and devices that require strong noise-proof properties, restriction of noise emission, etc.
Also suitable for onboard and vehicle related uses that require high-speed, large-volume transmission and heat resistance.
Transmission applications that require blast-proof specifications in plant facilities, etc

Configuration Table

Optical fiber type	HPCF
Core diameter / materials	200 μm / quartz glass
Clad diameter / materials	230 μm / UV resin
Core wire diameter / materials	0.9 mm / PVC resin
Fiber diameter / materials	2.2 mm / PVC resin
Cable diameter / materials	7.6 mm / PVC resin
Numerical aperture (NA)	0.41

Tensile strength		≧980 N
Allowable bend radius		≧80 mm
Bending strength (*1)		≧20 million times (R 50 mm)
Operation temperature range		－20 to 60°C
Transmission loss	λ=650 nm	≦ 15 dB/km
Transmission loss	λ=850 nm	≦ 7 dB/km
Transmission band (λ=850 nm/@25°C)		≧ 10 MHz/km

*1 : These special characteristics indicate actual values under Oki test conditions.
They are not guaranteed values. For details, see page 81.

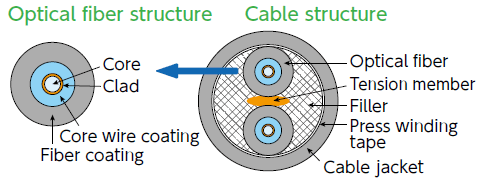

Structure

Construction

Model no.

2-core	PCK202HPX
