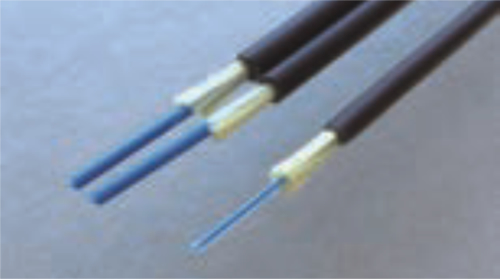

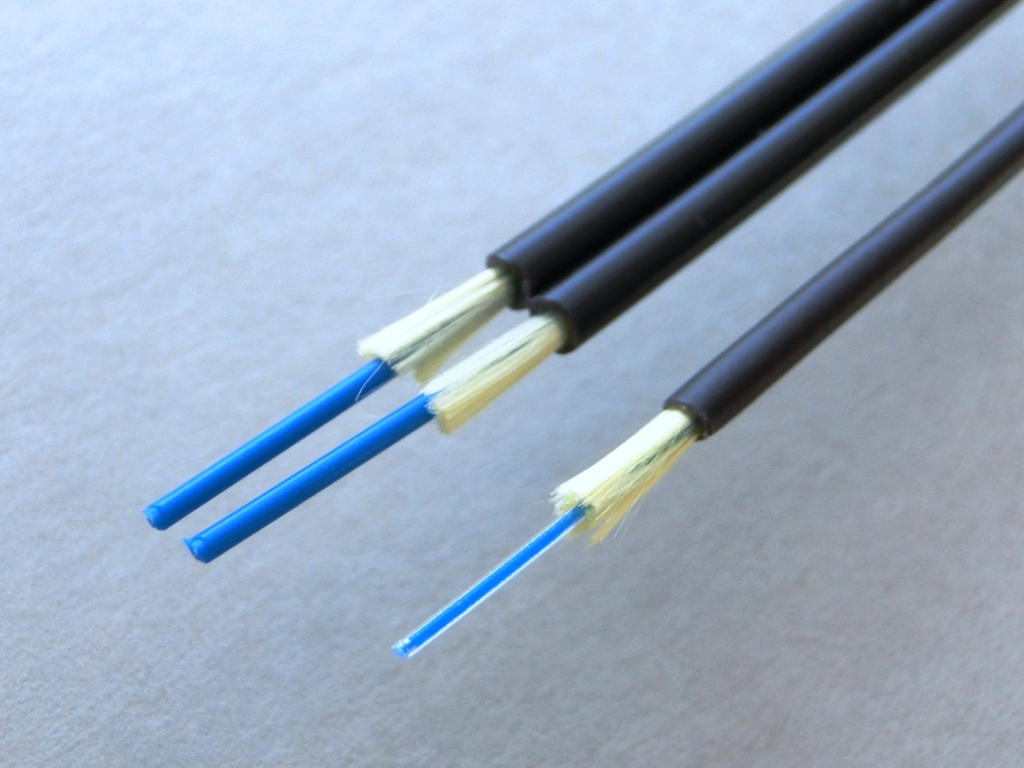

Optical fiber for wiring inside instruments

Overview

Features

• Suitable for wiring inside instruments and between racks, which requires strong noise-proof properties and restriction of noise emission.
• Also suitable for onboard and vehicle related uses that require high-speed, largevolume transmission and heat resistance.

Configuration Table *1

Optical fiber type		HPCF
Core diameter / materials		200μm / quartz glass
Clad diameter / materials		230μm / UV resin
Core wire diameter / materials		0.9mm / PVC resin
Fiber diameter	1-core type	2.2mm
	2-core type	2.2 × 4.4mm
Fiber color / materials		Black / PVC resin
Numerical aperture (NA)		0.41

Tensile strength	1-core type	≧ 127N
	2-core type	≧ 245N
Allowable bend radius		≧ 30mm (2-core is short-diameter direction only)
Operation temperature range		－20 to 70°C
Transmission loss	λ=650nm	≦ 15dB/km
	λ=850nm	≦ 7dB/km
Transmission band (λ=850nm/@25°C)		≧ 10MHz/km

• *1 : Specifications for HPCF fiber. Consult us separately for all-quartz fibers.

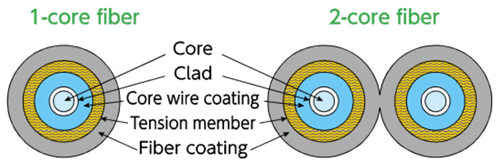

Structure

Model no. *2

1-core	PCK201HVQ
2-core	PCK202HVQ

• *2 : Consult us separately for all-quartz fiber cords.

---
