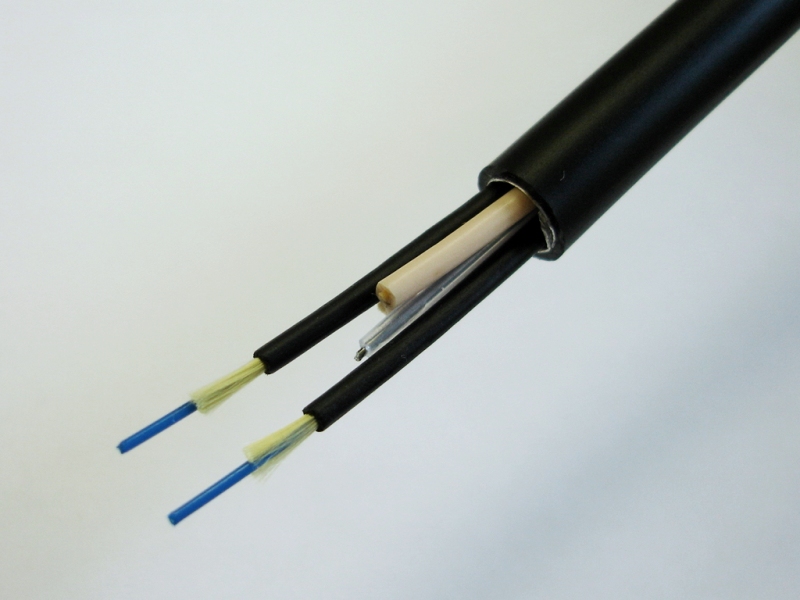

Laminated aluminum polyethylene (LAP) optical cable for outdoor use

Overview

Features

• Fixed-wiring applications, etc. for transmission between instruments and devices installed outside, high humidity underground conditions, etc.
• Communication applications in which you want to completely prevent the effects from external noise in particular, etc.

Configuration Table *1

Optical fiber type	HPCF
Core diameter / materials	200μm / quartz glass
Clad diameter / materials	230μm / UV resin
Core wire diameter / materials	0.9mm / PVC resin
Fiber diameter / materials	2.2mm / PVC resin
Central tensile strength body diameter / materials	φ1.7mm / steel wire with PE coating
Cable diameter / materials	10.5mm / PE resin
Numerical aperture (NA)	0.41

Tensile strength		≧ 1450N
Allowable bend radius		≧ 100mm
Operation temperature range		－20 - 70°C
Transmission loss	λ=650nm	≦ 15dB/km
	λ=850nm	≦ 7dB/km
Transmission band (λ=850nm/@25°C)		≧ 10MHz/km

• *1 : Specifications for HPCF fiber. Consult us separately for all-quartz fibers.

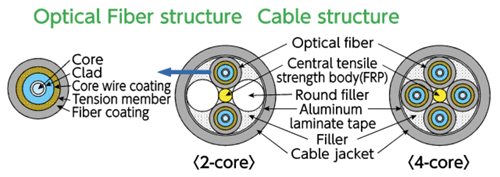

Structure

Model no. *2

2-core	PCK202HVY
4-core	PCK204HVY

• *2 : Consult us separately for all-quartz fiber cords.

---
