HPCF Optical fiber

Optical cable without metal part for ﬁxed wiring

Overview

High bending resistance HPCF fiber optic cable

This Optical cable without metal part for fixed wiring uses FRP (fiber reinforced plastic) keeping off stress to the optical cable laying in a pipe or cable rack, which is suitable for using under high-voltage environments, electrical difference between equipments and lightning.

Features

UEnvironments and devices that require strong noise-proof properties, restriction of noise emission, etc.
Conditions in which the electrical potential difference between machines in high-voltage environments cause problems, applications in which you want to prevent the effects of electrical leaks and lightning surges, etc.
Transmission applications that require blast-proof specifications in plant facilities.

Configuration Table

Optical fiber type	HPCF
Core diameter / materials	200μm / quartz glass
Clad diameter / materials	230μm / UV resin
Core wire diameter / materials	0.9mm / PVC resin
Fiber diameter / materials	2.2mm / PVC resin
Central tensile strength body diameter / materials	2.8mm / FRP with PE coating
Cable diameter / materials	9.5mm / PVC resin
Numerical aperture (NA)	0.41

Tensile strength		≧ 735N
Allowable bend radius		≧ 190mm
Operation temperature range		－20 to 60°C
Transmission loss	λ=650nm	≦ 15dB/km
Transmission loss	λ=850nm	≦ 7dB/km
Transmission band (λ=850nm/@25°C)		≧ 10MHz·km

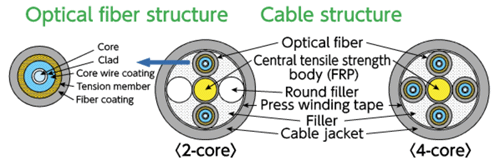

Structure

Construction

Model no.

2-core	PCK202HVX (non-metallic)
4-core	PCK204HVX (non-metallic)
