eco-surge® F(cable type)
Overview

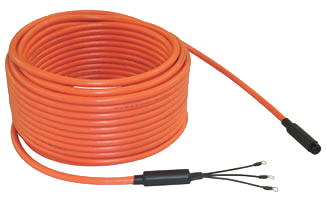

We have integrated the "surge suppression wire" into the cable to create a cable-type product. It can be used not only in newly installed systems but also in existing systems as a replacement for conventional filters and reactors, enabling a significant reduction in installation space. It is suitable for both indoor and outdoor installation environments.
The length of eco surge® F shall be equal to or longer than the power cable length. In addition, the supported power cable length is up to 100 m as standard.

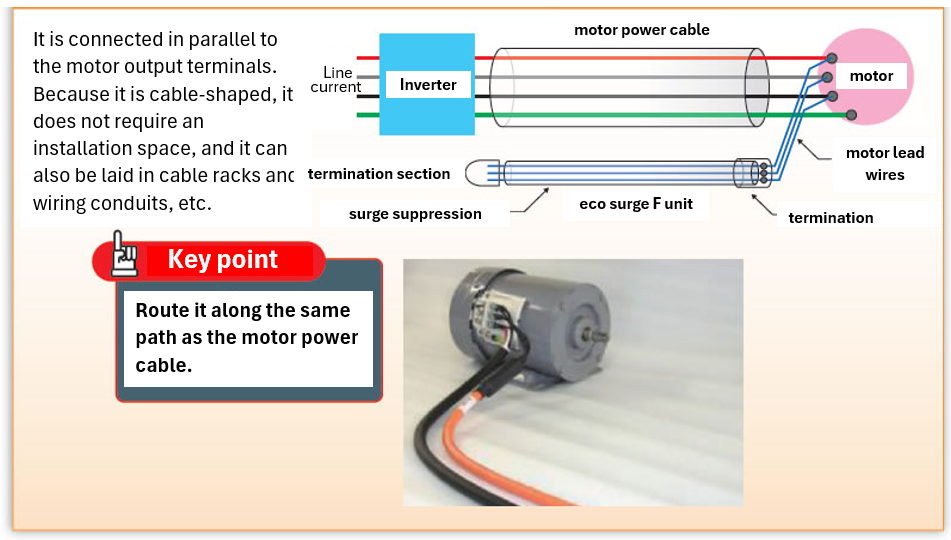

Installation

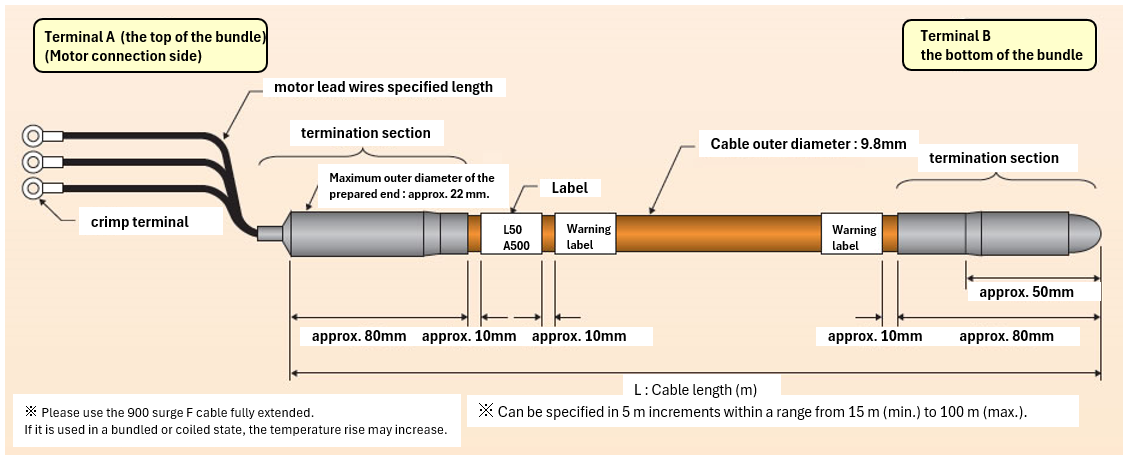

Overview diagram
Product name・Specifications
| Product name | SSF-L(1)-A(2)-M(3)(*1) | |
|---|---|---|
| Micro-surge voltage | 1000V or less (between phases) | |
| Applicable motor wiring length | 100m or less | |
| 2500Vrms motor lead wires : between each phase | ||
| Insulator resistance (MΩ・km) | 50MΩ or more | |
| 10mA or less | ||
| Applicable inverter | Power source voltage | AC 480V or less |
| Inverter capacity |
75kW or less We manufacture units individually for motors exceeding 75kW. |
|
| Output frequency | 0.1Hz～400Hz | |
| Carrier frequency | 15kHz or less | |
| Applicable inverter | Indoors | |
| However, the installation environment must be free of dust, direct sunlight, corrosive gases, flammable gases, oil mist, steam, and water droplets. Ensure also that no condensation forms due to rapid temperature changes. The environment must not contain excessive salt (guideline: 0.01 mg/cm² or less per year). | ||
| Ambient temperature (°C) | -20°C ～ +40°C | |
| Ambient humidity (%RH) | 85%RH or less (No condensation) | |
| Altitude (m) | 1000m or less | |
| Vibration (G) | 0.7G or less | |
| Environmental compliance | Compliant with the RoHS Directive | |
| Outer diameter (termination section / cable section) |
Maximum outer diameter at the termination section: approx. 22 mm; Standard cable outer diameter: 9.8 mm. |
|
| Standard weight | 12.5kg | |
- *1 : Product name code
- (1):Indicates the cable length.
- You can specify the length in 5 m increments within a range from a minimum of 15 m to a maximum of 100 m.
- (2):Indicates the lead wire length.
- You can specify the length within a range from a minimum of 50 mm to a maximum of 1,000 mm. Because the selectable increment depends on the lead wire length, see below. For 50 mm to 500 mm, you can specify the length in 50 mm increments. For lengths exceeding 500 mm, you can specify the length in 100 mm increments.
- (3):Indicates the crimp terminal size(M3 to M12).
- Inquiries regarding materials, consultations, and technology
- Inquiry from Web: Inquiry form
