EDM Wire



OB WIRE Series(OB-PZ wire / OB-PZN wire)

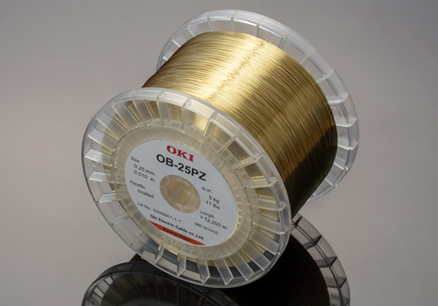

OB-PZ wire

Features

OB-PZN wire

  • Uses brass with a high zinc content. It has exceptional discharge characteristics.
  • Due to the paraffin on the wire surface, stable wire running is achieved even on old machines.
  • Exceptional slipperiness Suppresses the generation of brass powder while running.
  • It has the straightness and appropriate tensile strength that are essential for automatic threading and stable machining.
  • Uses high purity material containing minimal impurities.

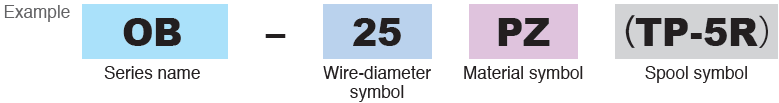

Rule of product naming

Wire diameter and characteristics

Wire diameter (mm) Diameter tolerance (mm) Tensile strength (MPa) Elongation (%)
0.10 - 0.30 ±0.001 980 or more 3.0 or less

Product lineup

Spool symbol Spool color Spool weight 0.10mm 0.15mm 0.20mm 0.25mm 0.30mm
P-3R Gray 3 ○ ○ - - -
TP-5R Transparent 5 - ○ ○ ○ ○
P-10RA Transparent 10 - - ○ ○ ○
P-15RA Gray 20 - - ○ ○ ○
K-160 * White 6 - - ○ ○ ○
K-200 * White 15 - - ○ ○ ○
  • * : DIN standard size spools ○: A standard stock product, --: A product on order
  • * : Please contact us for our lineup of other products.
  • * : Stock status changes constantly, so please check when ordering.

OB-PZN wire

Features

OB-PZN wire

  • Ideal for various machines such as FANUC machines.
  • Uses brass with a high zinc content. It has exceptional discharge characteristics.
  • The slipperiness of the wire is controlled by making it non-paraffin. Realizes stable wire feed.
  • It has the straightness and appropriate tensile strength that are essential for automatic threading and stable machining.
  • Uses high purity material containing minimal impurities.

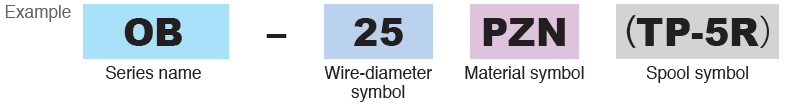

Rule of product naming

Wire diameter and characteristics

Wire diameter (mm) Diameter tolerance (mm) Tensile strength (MPa) Elongation (%)
0.10 - 0.30 ±0.001 980 or more 3.0 or less

Product lineup

Spool symbol Spool color Spool weight 0.10mm 0.15mm 0.20mm 0.25mm 0.30mm
P-3R Gray 3 ○ ○ - - -
TP-5R Transparent 5 - ○ ○ ○ ○
P-10RA Transparent 10 - - ○ ○ ○
P-15RA Gray 20 - - ○ ○ ○
K-160 * White 6 - - ○ ○ ○
K-200 * White 15 - - ○ ○ ○
  • * : DIN standard size spools ○: A standard stock product, --: A product on order
  • * : Please contact us for our lineup of other products.
  • * : Stock status changes constantly, so please check when ordering.
