Non-paraffin OB-PN wire

Features

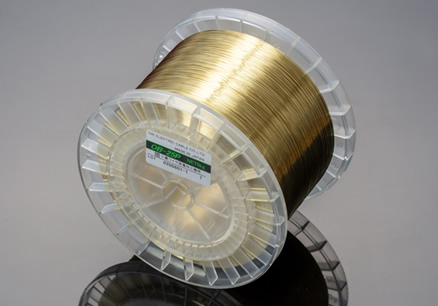

Non-paraffin OB-PN wire

  • This wire is not coated with paraffin.
  • It is ideal mainly for a wire EDM machine that is used in combination with an AT unit made by Mitsubishi Electric.
  • This wire provides the work material with a fine finish and also realizes superior automatic threading ability.
  • Because the wire is not coated with paraffin, slipping of the wire is minimized, realizing stable wire feed. Very high automatic threading performance is realized when an AT unit is used with the FA series, RA90AT, or other EDM machine made by Mitsubishi Electric.

Product name

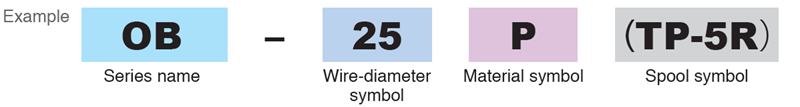

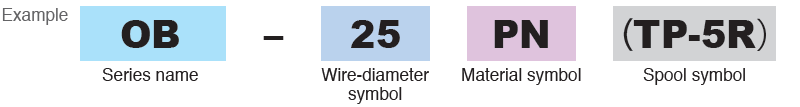

OB - Wire diameter symbol    Type symbol    (Bobbin symbol)    OKI control code

Wire diameter and characteristics

Wire diameter symbol Type symbol Standard wire diameter
mm
Wire diameter tolerance
mm
Tensile strength
MPa
Fracture load
N
Conductivity
%
7 PN 0.07 +/-0.001 980(Min) 3.77(Min) 22(Min)
10 0.10 7.7(Min)
15 0.15 17.4(Min)
20 0.20 30.8(Min)
25 0.25 48.2(Min)
30 0.30 69.3(Min)

Bobbin

Bobbin symbol Standard QTY
kg
0.07mm 0.10mm 0.15mm 0.20mm 0.25mm 0.30mm
P-3R 1.6 product on order product on order product on order
3 standard stock product standard stock product product on order product on order
P-5R 5 standard stock product standard stock product standard stock product
TP-5R *1 standard stock product product on order standard stock product
P-10 10 standard stock product standard stock product standard stock product
P-10T *1 product on order product on order product on order
K-200 *2 15 standard stock product product on order product on order
P-15 20 standard stock product standard stock product standard stock product

standard stock product is a standard stock product, and product on order is a product on order.
