EDM Wire



OB WIRE Series(OB-B wire / OB-BN wire)

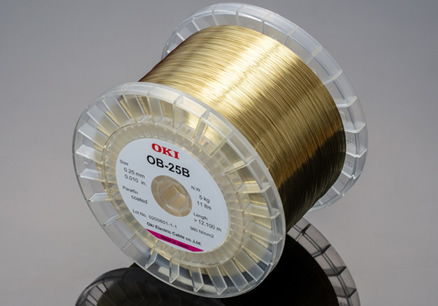

OB-B wire

Features

OB-B wire

  • It is a soft-type electrode wire.
  • It has low elasticity and exhibits maximum performance in wide-angle taper machining.
  • Uses high purity material containing minimal impurities.

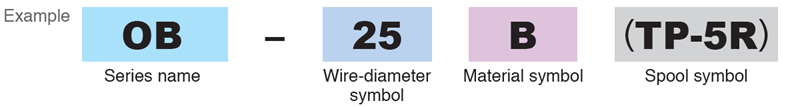

Rule of product naming

Wire diameter and characteristics

Wire diameter (mm) Diameter tolerance (mm) Tensile strength (MPa) Elongation (%)
0.20 - 0.30 ±0.001 442 or more 20 or less

Product lineup

Spool symbol Spool color Spool weight 0.10mm 0.15mm 0.20mm 0.25mm 0.30mm
P-3R Gray 3 - - - - -
TP-5R Transparent 5 - - ○ ○ ○
P-10RA Transparent 10 - - ○ ○ ○
P-15RA Gray 20 - - ○ ○ ○
K-160 * White 6 - - ○ ○ ○
K-200 * White 15 - - ○ ○ ○
  • * : DIN standard size spools ○: A standard stock product, --: A product on order
  • * : Please contact us for our lineup of other products.
  • * : Please refer to page 19 for spool specifications.
  • * : Stock status changes constantly, so please check when ordering.

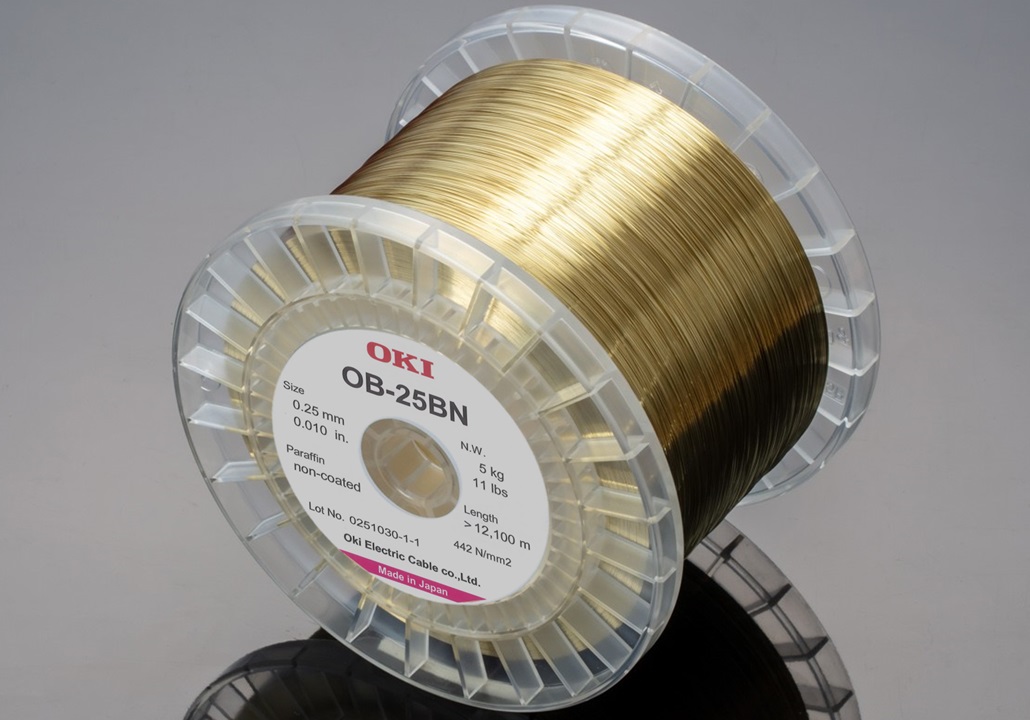

OB-BN wire

Features

OB-BN wire

  • It is a soft-type electrode wire.
  • It has low elasticity and exhibits maximum performance in wide-angle taper machining.
  • Uses high purity material containing minimal impurities.

Rule of product naming

Wire diameter and characteristics

Wire diameter (mm) Diameter tolerance (mm) Tensile strength (MPa) Elongation (%)
0.20 - 0.30 ±0.001 442 or more 20 or less

Product lineup

Spool symbol Spool color Spool weight 0.10mm 0.15mm 0.20mm 0.25mm 0.30mm
P-3R Gray 3 - - - - -
TP-5R Transparent 5 - - ○ ○ ○
P-10RA Transparent 10 - - ○ ○ ○
P-15RA Gray 20 - - ○ ○ ○
K-160 * White 6 - - ○ ○ ○
K-200 * White 15 - - ○ ○ ○
  • * : DIN standard size spools ○: A standard stock product, --: A product on order
  • * : Please contact us for our lineup of other products.
  • * : Please refer to page 19 for spool specifications.
  • * : Stock status changes constantly, so please check when ordering.
